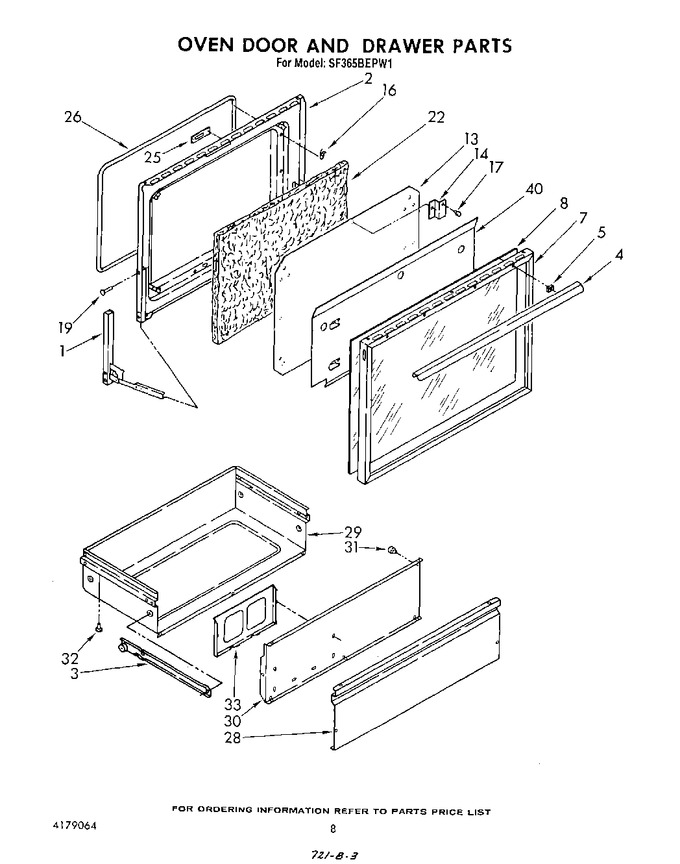

06 - Oven Door And Drawer


07 - Backguard , Lit/optional


08 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786375		Hinge, Oven Door (left Side)		Appelez-nous	-
1	786374		Hinge, Oven Door (right Side)		Appelez-nous	-
2	WP308685		Screw (4)   (Replaces: 786757)			Immediately	$ 7.08
2	WP488130		Nut (4)   (Replaces: 786272)				$ 6.27
2	786755		Screw, 8-32 X 5/8 (4)		Appelez-nous	-
2	786405		Liner, Oven Door		Appelez-nous	-
2	WP965173		Screw, 8a X 3/8 (6)   (Replaces: 786756)			Immediately	$ 9.65
2	WP965173		Screw, 8 X 3/8 (3)   (Replaces: 786745)			Immediately	$ 9.65
3	786813		Runner (l.h.)		Appelez-nous	-
3	786814		Runner (r.h.)		Appelez-nous	-
4	786408		Handle		Appelez-nous	-
5	786410		Spacer, Handle (2)		Appelez-nous	-
7	786417		Frame		Appelez-nous	-
8	786418		Panel, Black Glass		Appelez-nous	-
13	786423		Retainer, Insulation		Appelez-nous	-
14	786425		Bracket, Glass Support (3)		Appelez-nous	-
16	786426		Clip, Speed (15)		Appelez-nous	-
17	786427		Bumper, Window (2)		Appelez-nous	-
19	786428		Pin, Hinge (2)		Appelez-nous	-
22	WPW10208653		Insulation, Door   (Replaces: 786412)			Immediately	$ 49.92
25	786671		Plate, Latch		Appelez-nous	-
26	786432		Gasket Assembly		Appelez-nous	-
28	786522		Panel, Drawer (white)		Appelez-nous	-
28	786521		Panel, Drawer (almond)				$ 45.18
28	786519		Panel, Drawer (platinum)		Appelez-nous	-
28	786520		Panel, Drawer (toast)		Appelez-nous	-
29	786808		Wrapper, Drawer		Appelez-nous	-
30	786668		Liner, Drawer		Appelez-nous	-
31	786526		Bumper (2)		Appelez-nous	-
32	786527		Rivet, Plastic (4)		Appelez-nous	-
33	786807		Rack, Literature		Appelez-nous	-
40	786422		Baffle, Air		Appelez-nous	-
