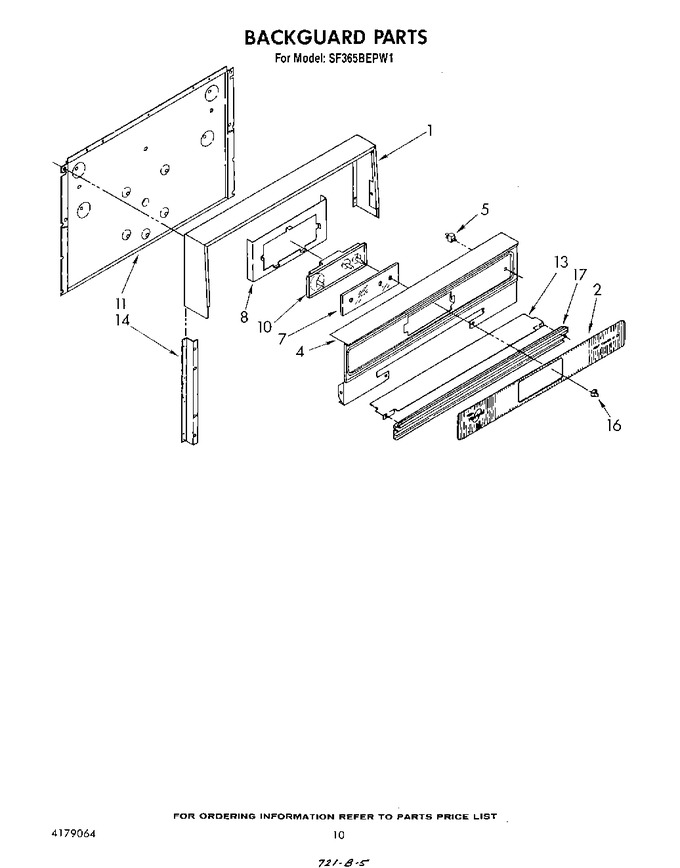

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 786444 | Frame |
|
- | |||||
| 1 | 786761 | Screw (4) |
|
- | |||||
| 2 | 786446 | Panel, Inlay |
|
- | |||||
| 4 | 786449 | Panel, Control (toast) |
|
- | |||||
| 4 | 786450 | Panel, Control (almond) |
|
- | |||||
| 4 | 786451 | Panel, Control (white) |
|
- | |||||
| 4 | 786448 | Panel, Control (platinum) |
|
- | |||||
| 5 | 786306 | Light, Indicator |
|
- | |||||
| 7 | 786453 | Glass, Timer |
|
- | |||||
| 8 | 786454 | Backet, Timer |
|
- | |||||
| 10 | 786457 | Timer |
|
- | |||||
| 11 | 786455 | Cover, Rear |
|
- | |||||
| 13 | 786456 | Shield, Heat |
|
- | |||||
| 14 | 786458 | Support, Control Panel |
|
- | |||||
| 16 | 786434 | Knob, Timer (3) |
|
- | |||||
| 17 | 786694 | Trim, Lower |
|
- | |||||
| LIT786300 | Instructions, Installation |
|
- | ||||||
| LIT786295 | Guide, Use & Care |
|
- | ||||||
| LIT4179064 | List, Repair Parts |
|
- | ||||||
| LIT786302 | Guide, Cooking |
|
- |
