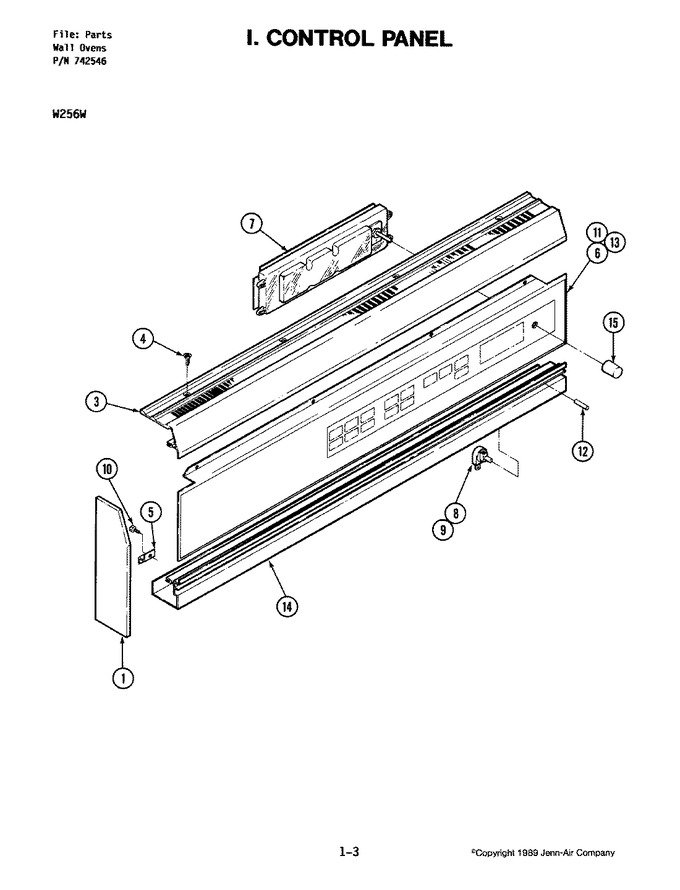

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 705015 | Cap, End (rt/wht) | 1 |
|
- | ||||
| 2 | 705014 | Cap, End (lt/wht) | 1 |
|
- | ||||
| 3 | 705016 | Extrusion, Top | 1 |
|
- | ||||
| 4 | 712066 | Screw | 1 |
|
- | ||||
| 5 | 701609 | Angle, Attachment | 1 |
|
- | ||||
| 6 | Y712598 | Control Panel & Back Assy | 1 |
|
- | ||||
| 7 | Y704729 | Timer | 1 |
|
- | ||||
| 8 | Y705011 | Switch, Push (alum) | 1 |
|
- | ||||
| 9 | 705018 | Bracket, Switch | 1 |
|
- | ||||
| 10 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 11 | 704704 | Harness, Wire (j2) | 1 |
|
- | ||||
| 12 | 705010 | Extension, Switch (wht) | 1 |
|
- | ||||
| 13 | 704709 | Harness, Wire Lower | 1 |
|
$ 763.44 | ||||
| 14 | 705017 | Extrusion, Bottom (wht) | 1 |
|
- | ||||
| 15 | WP7711P492-60 | Knob, Clock (lg-gry) ?? (Replaces: Y704485) | 1 |
|
$ 12.13 |
