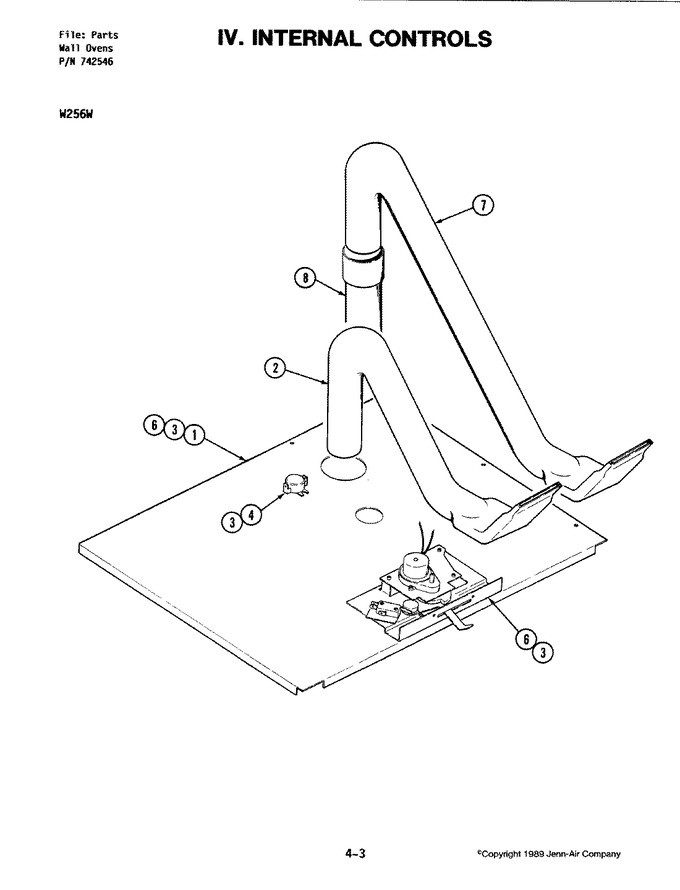

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704684 | Panel, Top | 1 |
|
- | ||||
| 2 | 703066 | Tube, Vent Offset (upper) | 1 |
|
- | ||||
| 3 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 4 | 703259 | Limit, Thermostat | 1 |
|
- | ||||
| 4 | 701687 | Thermostat | 1 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 6 | Y704915 | Latch, Automatic (lower) | 1 |
|
- | ||||
| 6 | Y704689 | Latch, Automatic (upper) | 1 |
|
- | ||||
| 7 | 703067 | Tube, Vent-top (upper) | 1 |
|
- | ||||
| 8 | 705096 | Tube, Vent Bottom | 1 |
|
- |
