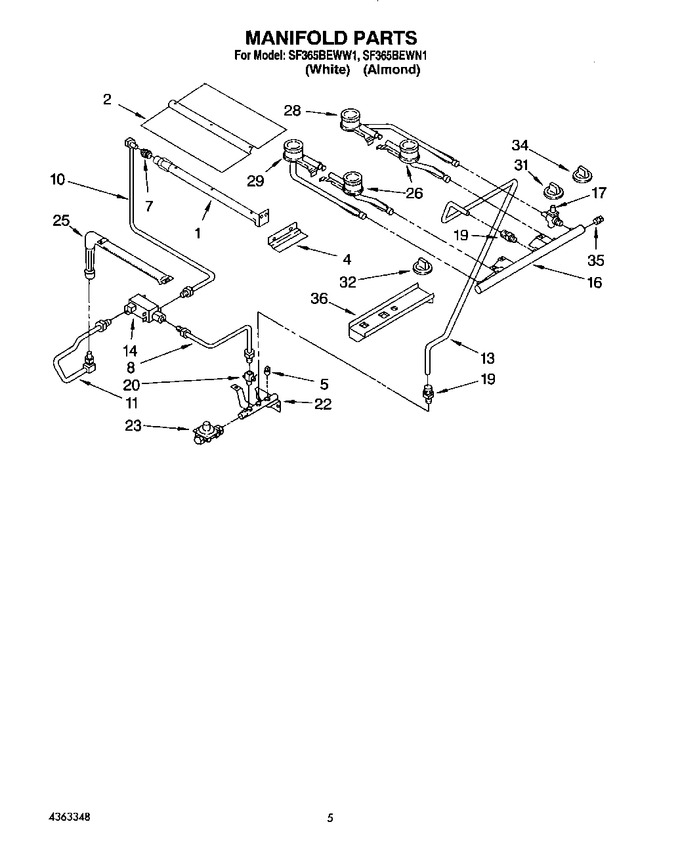

03 - Manifold
04 - Oven Electrical
05 - Oven Door And Drawer
06 - Backguard, Literature
07 - Cooktop
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 786753 | Nut, 6-32 (6) |
|
- | |||||
| 1 | 4320907 | Burner, Ultra Ray Broiler |
|
- | |||||
| 4 | 4320888 | Bracket, Burner Mounting |
|
- | |||||
| 5 | W10295523 | Pipe Plug, 1/8 Npt (Replaces: 786545) |
|
- | |||||
| 7 | 4320926 | Spud, Orifice (natural Gas No. 50) |
|
- | |||||
| 7 | 786309 | Lp Gas No. 58 |
|
- | |||||
| 8 | 4320314 | Tubing, (inlet To Gas Valve) |
|
- | |||||
| 10 | 4320925 | Orifice & Tubing Assembly (gas Valve To Ultra Ray Burner) |
|
- | |||||
| 10 | 786741 | Nut, Lock |
|
- | |||||
| 11 | 4320315 | Hood & Tubing Assembly (gas Valve To Lower Oven Burner) |
|
- | |||||
| 11 | 786741 | Nut, Lock |
|
- | |||||
| 13 | 4320313 | Tubing (inlet To Manifold) |
|
- | |||||
| 14 | 4320316 | Valve, Dual Gas Valve |
|
- | |||||
| 16 | 4320317 | Manifold |
|
- | |||||
| 17 | 4320318 | Valve, Top Burner (tri-set) |
|
- | |||||
| 19 | 4320319 | Fitting |
|
- | |||||
| 20 | 4320320 | Valve, Shut-off |
|
- | |||||
| 22 | 4320321 | Inlet, Gas |
|
- | |||||
| 23 | 786313 | Regulator, Pressure |
|
- | |||||
| 25 | 786314 | Oven Burner, Lower |
|
- | |||||
| 26 | 786315 | Top Burner, Front (2) |
|
- | |||||
| 28 | 786316 | Top Burner, R.r. |
|
- | |||||
| 29 | 786317 | Top Burner, L.r. |
|
- | |||||
| 31 | 4320722 | Knob, Top Burner (4) |
|
- | |||||
| 32 | 4320737 | Knob, Oven Control |
|
- | |||||
| 34 | 4320738 | Knob, Selector |
|
- | |||||
| 35 | 786665 | Pipe Plug, 3/8 Npt |
|
- | |||||
| 36 | 4315767 | Shelf, Gas Valve |
|
- |
