SELECT A DIAGRAM

01 - Internal Oven


02 - External Oven


03 - Manifold


04 - Oven Electrical


05 - Oven Door And Drawer


06 - Backguard, Literature


07 - Cooktop

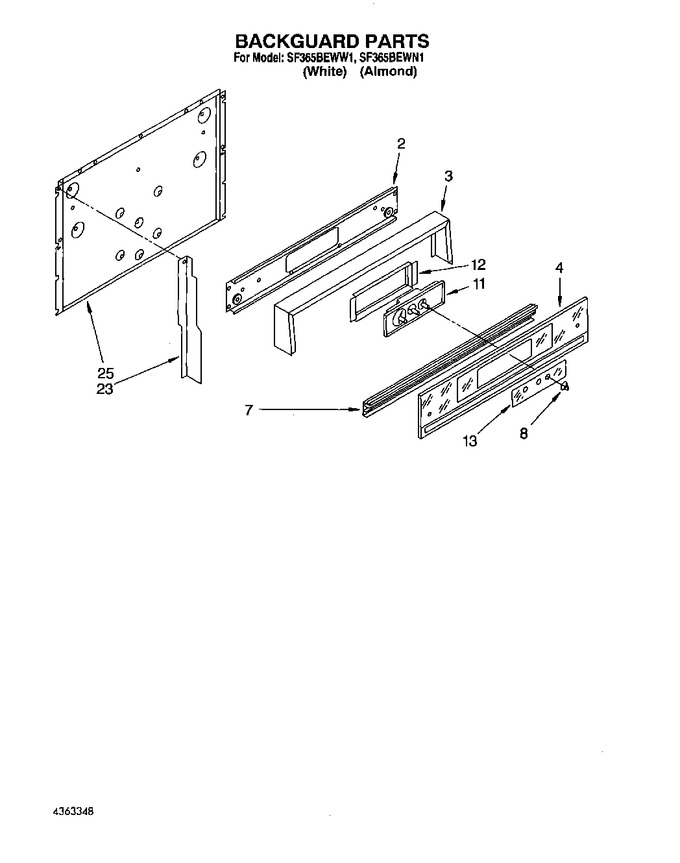

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	786451		Panel, Control Mounting (white)		Appelez-nous	-
2	786450		Panel, Control Mounting (almond)		Appelez-nous	-
3	4320900		Frame		Appelez-nous	-
4	4320932		Decorative Inlay		Appelez-nous	-
7	786694		Trim, Lower		Appelez-nous	-
8	786434		Knob, Clock (3)		Appelez-nous	-
11	4320904		Clock		Appelez-nous	-
12	786454		Plate, Clock Mounting		Appelez-nous	-
13	786453		Glass, Timer		Appelez-nous	-
23	786458		Support, Control Panel (2)		Appelez-nous	-
23	4315796		L.h.		Appelez-nous	-
23	4315795		R.h.		Appelez-nous	-
25	4320889		Retainer, Rear		Appelez-nous	-
	LIT4315710		Instructions, Installation		Appelez-nous	-
	LIT4315706		Guide, Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
