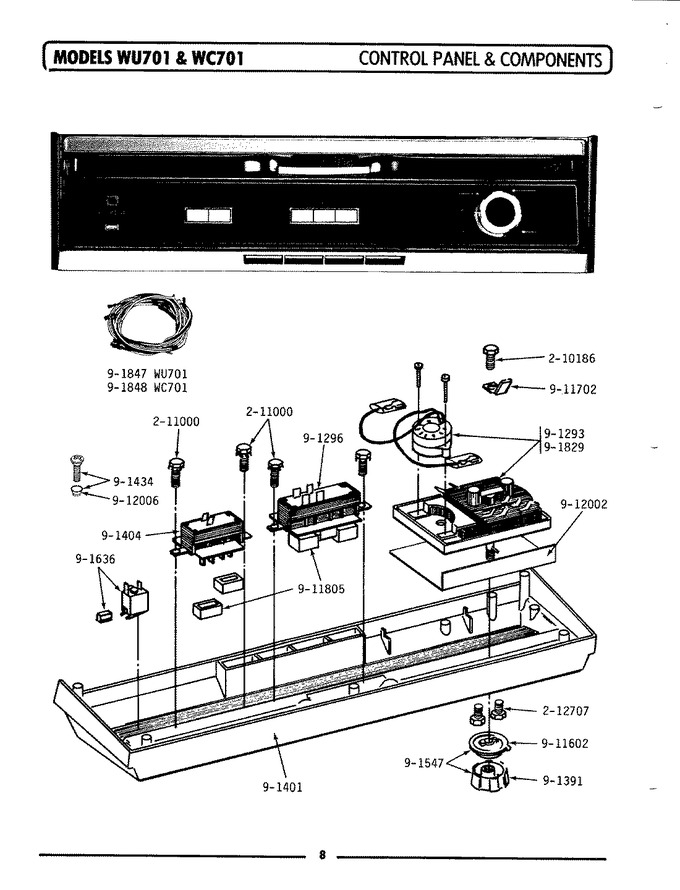

02 - Control Panel & Components


03 - Conversion Kit (wc701)


04 - Door Assembly


05 - Faucet Adapt Kit (inside Thread)(wc701)


06 - Faucet Adapt Kit (outside Thread)(wc701)


07 - Faucet Adapt Kit (unthreaded)(wc701)


08 - Faucet Assy,cbnt,frt Panel,base (wc701)


09 - Front Panel & Access Panel (wc701)


10 - Front Panel & Access Panel (wu701)


11 - Installation Accessories


12 - Pump Assembly


13 - Track & Rack Assembly


14 - Tub Assembly & Components


15 - Tub Supports, Base Frame, Motor & Valves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	00			$ 9.79
2	WP8281227		Screw,hex Head (brake Drum)   (Replaces: 211000)	00			$ 9.40
3	W11684507		Screw   (Replaces: 212707)	00			$ 12.23
4	UEFM		Timer   (Replaces: 901293)	00		Immediately	$ 95.38
5	901296		Control Switch, 3 Button	00	Appelez-nous	-
6	901391		Timer Knob With Insert	00	Appelez-nous	-
7	901401		Control Panel With Inserts	00	Appelez-nous	-
8	901404		Control Switch, 2 Button	00	Appelez-nous	-
9	901434		Screw And Washer Assembly	00	Appelez-nous	-
10	901547		Timer Knob And Dial-chrome	00	Appelez-nous	-
11	901636		Indicator Lamp	00	Appelez-nous	-
12	901829		Timer Motor	00	Appelez-nous	-
15	911602		Timer Indicator Dial-chrome	00	Appelez-nous	-
16	911702		Ground Receptacle	00	Appelez-nous	-
17	911805		Button For Switch	00	Appelez-nous	-
18	912002		Barrier For Timer	00	Appelez-nous	-
19	912006		Washer	00	Appelez-nous	-
