SELECT A DIAGRAM

01 - Blower/air Inlet & Water Level Float


02 - Control Panel & Components


03 - Conversion Kit (wc701)


04 - Door Assembly


05 - Faucet Adapt Kit (inside Thread)(wc701)


06 - Faucet Adapt Kit (outside Thread)(wc701)


07 - Faucet Adapt Kit (unthreaded)(wc701)


08 - Faucet Assy,cbnt,frt Panel,base (wc701)


09 - Front Panel & Access Panel (wc701)


10 - Front Panel & Access Panel (wu701)


11 - Installation Accessories


12 - Pump Assembly


13 - Track & Rack Assembly


14 - Tub Assembly & Components


15 - Tub Supports, Base Frame, Motor & Valves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	901433		Screw And Washer Assembly	00	Appelez-nous	-
2	901825		Access Panel-white	00	Appelez-nous	-
3	901825L		Access Panel-almond	00	Appelez-nous	-
4	901825M		Access Panel-harvest Wheat	00	Appelez-nous	-
5	901827		Panel, Front (wht)	00	Appelez-nous	-
6	901827L		Panel, Front (alm)	00	Appelez-nous	-
7	901827M		Panel, Front (hvst Wheat)	00	Appelez-nous	-
8	W11233072		Screw   (Replaces: 910647)	00		Immediately	$ 12.62
9	910890		Felt Pad For Front Panel	00	Appelez-nous	-
10	WP4312464		Screw   (Replaces: 911050)	00			$ 6.26
11	911426		Access Panel Barrier	00	Appelez-nous	-
12	911763		U Type Fastener	00	Appelez-nous	-
13	911814		Screw	00	Appelez-nous	-
14	911845		Nylon Grommet	00	Appelez-nous	-
15	911875		Grounding Clip	00	Appelez-nous	-
16	911914		Insulation For Access Panel	00	Appelez-nous	-
17	911915		Insulation For Front Panel	00	Appelez-nous	-
18	912006		Washer	00	Appelez-nous	-

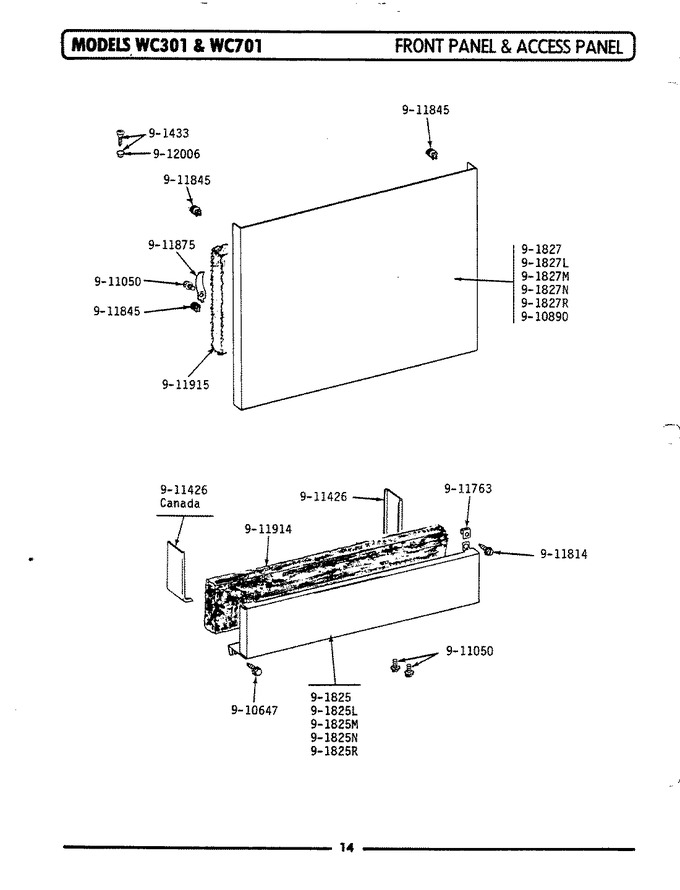

    View Diagram in Separate Window       Print Part List
