SELECT A DIAGRAM

01 - Blower Motor (convection)


02 - Blower Motor (cooling)


03 - Body-lower


04 - Body-upper (m167b/m167w)


05 - Control Panel-lower


06 - Control Panel-upper (m167b/m167w)


07 - Door-upper (m167b,m167w)


08 - Interlock Switches (upper M167b, M167w)


09 - Internal Controls-lower


10 - Internal Controls-upper (m167b/m167w)


11 - Oven (lower)


12 - Trim-microwave (m167b, M167w)

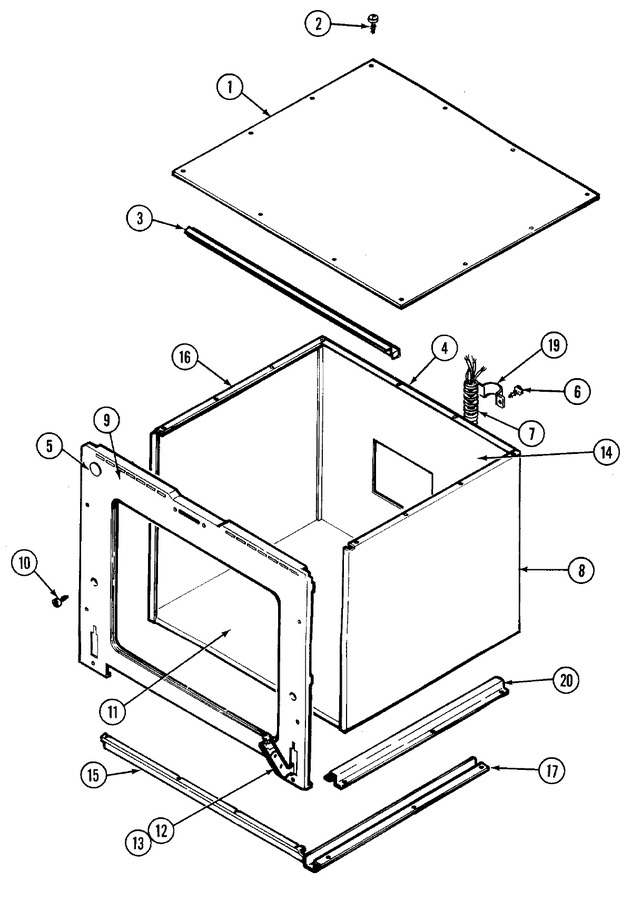

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	04100567		Top, Unit (outer)	11	Appelez-nous	-
2	WP12990527		Screw   (Replaces: Y708955)	11		Immediately	$ 7.15
3	703095		Support, Top	11	Appelez-nous	-
4	04100564		Back, Outer	11	Appelez-nous	-
5	701666		Switch, Door	11	Appelez-nous	-
6	WP7101P126-60		Screw   (Replaces: Y708310)	11		Immediately	$ 6.85
7	04100590		Wire Cable Assy.	11	Appelez-nous	-
8	04100558		Panel, Side (rh)	11	Appelez-nous	-
9	71001487		Closure, Front	14	Appelez-nous	-
9	04100566		Bracket	11	Appelez-nous	-
9	WPW10068250		Screw   (Replaces: Y700582)	11			$ 3.66
9	04100571		Closure, Front	11	Appelez-nous	-
10	W11233072		Screw   (Replaces: Y708733)	11		Immediately	$ 12.62
11	04100562		Panel, Bottom	11	Appelez-nous	-
12	Y04100337		Hinge, Oven Door	11	Appelez-nous	-
12	04100577		Backplate, Hinge	11	Appelez-nous	-
13	WP3196183		Screw   (Replaces: Y701664)	11		Immediately	$ 6.98
14	04100565		Insulation Wrap	11	Appelez-nous	-
14	04100561		Back, Inner	11	Appelez-nous	-
15	04100551		Trim, Oven (lwr-wht)	11	Appelez-nous	-
15	71001457		Trim, Oven (rt/wht)	11	Appelez-nous	-
15	71001456		Trim, Oven (lt/wht)	11	Appelez-nous	-
16	04100557		Panel, Side (lh)	11	Appelez-nous	-
17	700596		Rail, Bottom	11	Appelez-nous	-
19	702336		Angle, Oven Support	11	Appelez-nous	-
19	DE81-08030A		Clamp, Conduit   (Replaces: 701692)	11			$ 131.01
20	701704		Outlet, Appliance	11	Appelez-nous	-
20	04100563		Rail, Support	11	Appelez-nous	-
NI	Y700556		Clip, J	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
