Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 04100559 Panel, Inner Top 11 Appelez-nous -
2 Y702750 Limit, Fan 11 Appelez-nous -
2 04100539 Tube, Vent (upr Oven) 11 Appelez-nous -
3 WP12990527 Screw   (Replaces: Y708955) 11 In-Stock Immediately $ 7.15

4 701687 Thermostat 11 Appelez-nous -
5 705060 Wire, Green 11 Appelez-nous -
5 Y04100594 Wire, Brown W/resistor 11 Appelez-nous -
5 Y04100259 Adaptor 11 Appelez-nous -
5 704974 Wire, Gray 11 Appelez-nous -
5 704823 Harness, Wire 11 Appelez-nous -
5 Y704689 Latch, Automatic (upper) 11 Appelez-nous -
5 WPW10339879 Tie, Cable   (Replaces: 701678) 11 Special Order $ 7.11


    View Diagram in Separate Window     Print Icon   Print Part List

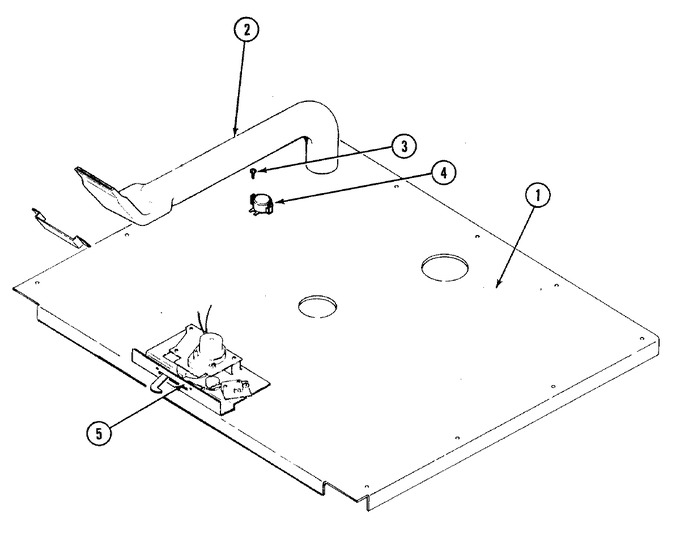

Diagram for WM2780W
