SELECT A DIAGRAM

01 - Internal Oven


02 - External Oven


03 - Manifold


04 - Oven Electrical, Literature


05 - Oven Door And Drawer


06 - Backguard


07 - Cooktop

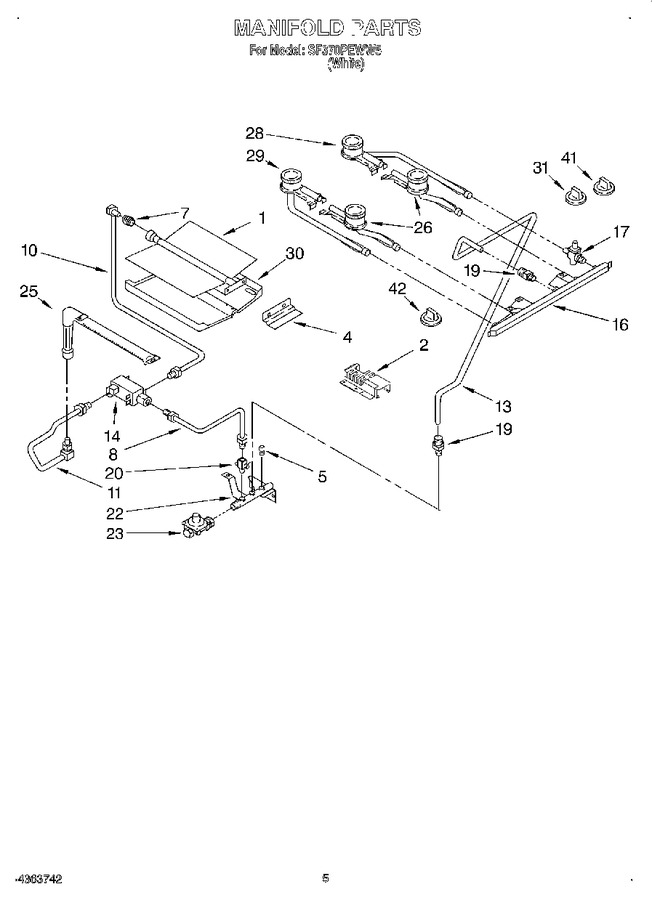

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4320907		Burner, Broiler		Appelez-nous	-
2	4363532		Shield, Ignitor		Appelez-nous	-
4	4320888		Support, Burner Mounting		Appelez-nous	-
5	W10295523		Pipe Plug, 1/8 Npt   (Replaces: 786545)		Appelez-nous	-
7	4320926		Orifice (natural Gas No. 51.)		Appelez-nous	-
8	4320314		Tubing, (inlet To Gas Valve)		Appelez-nous	-
10	4320925		Orifice & Tubing Assembly (gas Valve To Ultra Ray Burner)		Appelez-nous	-
10	786741		Nut, Lock		Appelez-nous	-
11	4320315		Hood & Tubing Assembly (gas Valve To Lower Oven Burner)		Appelez-nous	-
11	786741		Nut, Lock		Appelez-nous	-
13	4320313		Tubing (inlet To Manifold)		Appelez-nous	-
14	4320316		Valve, Dual Gas Valve		Appelez-nous	-
16	4320317		Manifold		Appelez-nous	-
17	4320318		Valve, Top Burner		Appelez-nous	-
19	4179116		Screw		Appelez-nous	-
19	4320319		Fitting		Appelez-nous	-
20	4362689		Valve, Shut Off		Appelez-nous	-
22	4320321		Inlet, Gas		Appelez-nous	-
23	786313		Regulator, Pressure		Appelez-nous	-
25	786314		Oven Burner, Lower		Appelez-nous	-
26	786315		Top Burner Front		Appelez-nous	-
28	786316		Top Burner, R.r.		Appelez-nous	-
29	786317		Top Burner, L.r.		Appelez-nous	-
30	4179139		Reflector		Appelez-nous	-
31	4320722		Knob, Top Burner (4)		Appelez-nous	-
41	4321096		Knob, Thermostat		Appelez-nous	-
42	4320738		Knob, Selector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
