SELECT A DIAGRAM

01 - Internal Oven


02 - External Oven


03 - Manifold

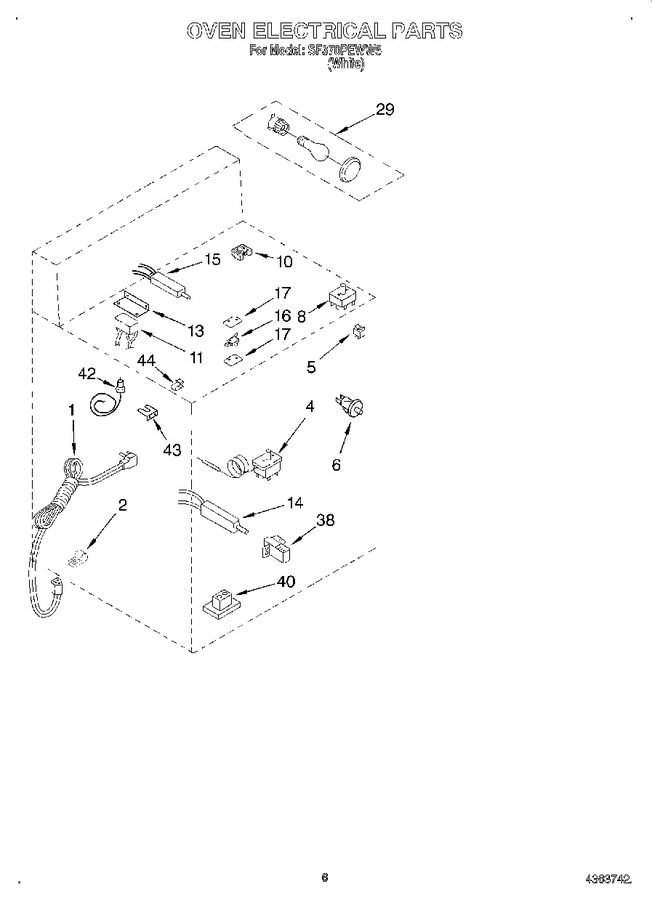

04 - Oven Electrical, Literature


05 - Oven Door And Drawer


06 - Backguard


07 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363561		Cord, Power		Appelez-nous	-
2	4157298		Clamp, Wire		Appelez-nous	-
2	WP965173		Screw   (Replaces: 4315342)			Immediately	$ 9.65
4	4321095		Thermostat, Oven		Appelez-nous	-
5	786325		Switch, Rocker		Appelez-nous	-
6	4363736		Switch, Oven Light		Appelez-nous	-
8	4179076		Switch, Selector		Appelez-nous	-
10	4320326		Switch, Ignition		Appelez-nous	-
11	4363272		Module, Spark		Appelez-nous	-
13	4320892		Bracket, Spark Module		Appelez-nous	-
14	786324		Ignitor, Bake   (Replaces: 4363426)			Immediately	$ 60.68
15	4363531		Ignitor, Broil		Appelez-nous	-
16	4362916		Switch, Oven Door Latch		Appelez-nous	-
17	786380		Insulator, Switch		Appelez-nous	-
17	786751		Screw		Appelez-nous	-
29	WP74011278		Assembly, Oven Light   (Replaces: 4320323)				$ 101.56
38	786801		Bracket, Bake Ignitor		Appelez-nous	-
40	4362620		Plug, Ignitor Wires		Appelez-nous	-
42	4157608		Electrode				$ 99.90
43	WPY0070927		Clip, Mounting Electrode   (Replaces: 786580)				$ 6.85
43	WP965173		Screw   (Replaces: 4315342)			Immediately	$ 9.65
44	4315780		Clip, Cable Esm		Appelez-nous	-
	LIT4363373		Guide, Use & Care		Appelez-nous	-
	LIT4363644		Diagram, Wiring		Appelez-nous	-
	LIT4363370		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
