SELECT A DIAGRAM

01 - Base (rcm47jw-14t/rcm47j-14t)


02 - Body


03 - Control Panel (rcm47jw-14t/rcm47j-14t)


04 - Door


05 - Door (rcm47jw-14t/rcm47j-14t)


06 - Interlock Switches (rcm47jx-14t)


07 - Internal Controls


08 - Internal Controls(rcm47jw-14t/rcm47j-14t


09 - Oven


10 - Turntable (rcm47jw-14t/rcm47j-14t)


11 - Wiring Information

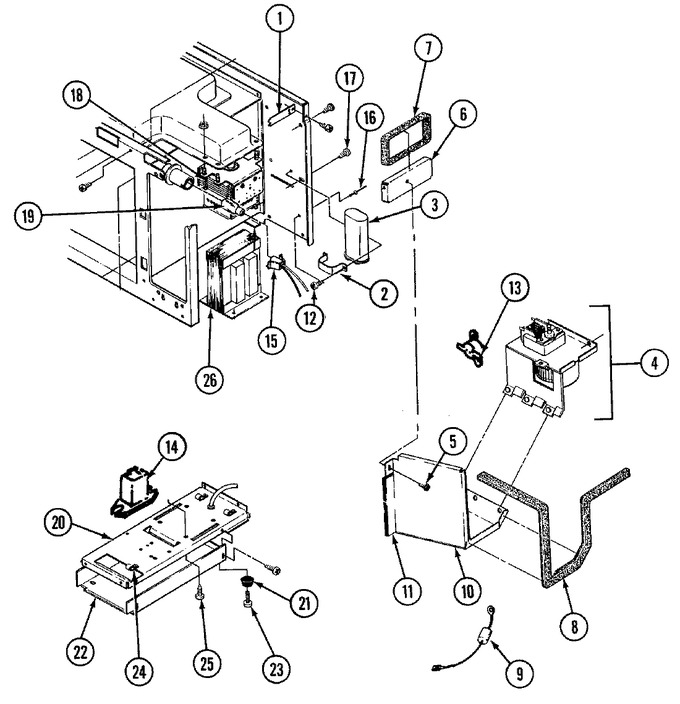

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	02020020		Brace, Upper Right Support	11	Appelez-nous	-
2	02030123		Bracket	11	Appelez-nous	-
3	Y01020023		Capacitor	11	Appelez-nous	-
4	01110029		Motor, Blower	11	Appelez-nous	-
4	Y02170119		Housing, Blower	11	Appelez-nous	-
4	04021191		Blower Assembly	11	Appelez-nous	-
4	Y01110016		Wheel, Blower	11	Appelez-nous	-
4	Y02030144		Bracket, Blower Support	11	Appelez-nous	-
4	51001015		Cover, Blower	11	Appelez-nous	-
5	WPY706189		Screw   (Replaces: Y03020099)	11		Immediately	$ 6.47
6	Y02170111		Support, Duct Magnetron	11	Appelez-nous	-
7	05140007		Tape, Foam	11	Appelez-nous	-
8	02310070		Tape, Foam	11	Appelez-nous	-
9	Y04010206		Diode	11	Appelez-nous	-
10	Y04020842		Duct Assembly, Magnetron	11	Appelez-nous	-
11	05140007		Tape, Foam	11	Appelez-nous	-
12	Y03020076		Screw	11	Appelez-nous	-
13	01180010		Switch, Temp Limit	11	Appelez-nous	-
14	01120033		Relay	11	Appelez-nous	-
15	01100045		Receptacle, Light	11	Appelez-nous	-
16	WP210720		Rivet, Pop   (Replaces: Y03060002)	11			$ 12.14
17	WP8281227		Screw   (Replaces: Y03010144)	11			$ 9.40
18	02320015		Baffle, Air Waveguide	11	Appelez-nous	-
18	01040004		Magnetron	11	Appelez-nous	-
19	Y01060024		Bulb, Light	11	Appelez-nous	-
20	02040110		Component Mtg. Plate	11	Appelez-nous	-
21	02230012		Foot, Base	11	Appelez-nous	-
22	02300039		Cover, Mtg Plate	11	Appelez-nous	-
23	Y03020104		Screw	11	Appelez-nous	-
24	Y03110059		Clip	11	Appelez-nous	-
25	03010094		Screw	11	Appelez-nous	-
26	Y03110021		Clip Canoe	11	Appelez-nous	-
26	51001014		Duct, Transformer	11	Appelez-nous	-
26	01130028		Transformer, H.v.	11	Appelez-nous	-
NI	Y04060532		Hv Lead Wire (8 ``)	11	Appelez-nous	-
NI	01050008		Fuse, Thermal	11	Appelez-nous	-
NI	51001008		Harness, Wire (main)	11	Appelez-nous	-
NI	Y03110078		Clip	11	Appelez-nous	-
NI	Y04060535		Hv Lead Wire (16``)	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
