SELECT A DIAGRAM

01 - Base (rcm47jw-14t/rcm47j-14t)


02 - Body


03 - Control Panel (rcm47jw-14t/rcm47j-14t)


04 - Door


05 - Door (rcm47jw-14t/rcm47j-14t)


06 - Interlock Switches (rcm47jx-14t)


07 - Internal Controls


08 - Internal Controls(rcm47jw-14t/rcm47j-14t

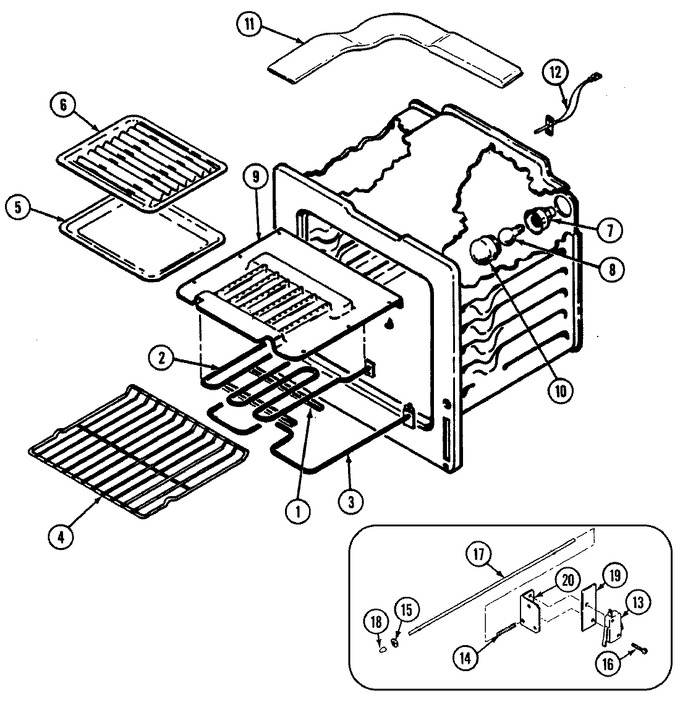

09 - Oven


10 - Turntable (rcm47jw-14t/rcm47j-14t)


11 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11772394		Screw   (Replaces: 7101P345-60)	11		Immediately	$ 10.94
1	3807F387-45		Support, Broil Element	11	Appelez-nous	-
2	7406P079-60		Element, Broil	11	Appelez-nous	-
3	W11233072		Screw   (Replaces: 7101P290-60)	11		Immediately	$ 12.62
3	WP74003020		Element, Bake   (Replaces: 7406P078-60)	11		Immediately	$ 129.31
4	WPW10282492		Rack, Oven   (Replaces: 7801P047-60)	11		Immediately	$ 65.15
5	3401F014-19		Pan, Broil	11	Appelez-nous	-
6	8312P002-60		Insert, Broiler Pan	11	Appelez-nous	-
7	WP7407P182-60		Receptacle, Bulb   (Replaces: 7407P088-60)	11		Immediately	$ 66.10
8	8009		Bulb-oven   (Replaces: 7407P103-60)	11		Immediately	$ 16.80
9	3601F237-47		Baffle, Broil	11	Appelez-nous	-
9	W11233072		Screw   (Replaces: 7101P290-60)	11		Immediately	$ 12.62
10	WP9781049		Cover, Bulb   (Replaces: 7724P047-60)	11		Immediately	$ 71.93
11	7506P125-60		Tube, Vent	11	Appelez-nous	-
11	WP7101P485-60		Screw, Base   (Replaces: 7101P084-60)	11			$ 26.33
11	4005F403-51		Cover, Vent	11	Appelez-nous	-
12	12001656		Sensor, Oven   (Replaces: 7430P010-60)	11		Immediately	$ 39.55
13	7403P357-60		Switch, Door Light	11	Appelez-nous	-
14	7803P067-60		Spring	11	Appelez-nous	-
15	7109P020-60		Washer	11	Appelez-nous	-
16	7101P330-60		Screw, Switch	11	Appelez-nous	-
17	7809P023-60		Rod	11	Appelez-nous	-
18	8003P012-60		Bumper	11	Appelez-nous	-
19	7003P062-60		Insulator, Switch	11	Appelez-nous	-
20	W11233072		Screw   (Replaces: 7101P290-60)	11		Immediately	$ 12.62
20	3801F354-51		Bracket, Light Switch	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
