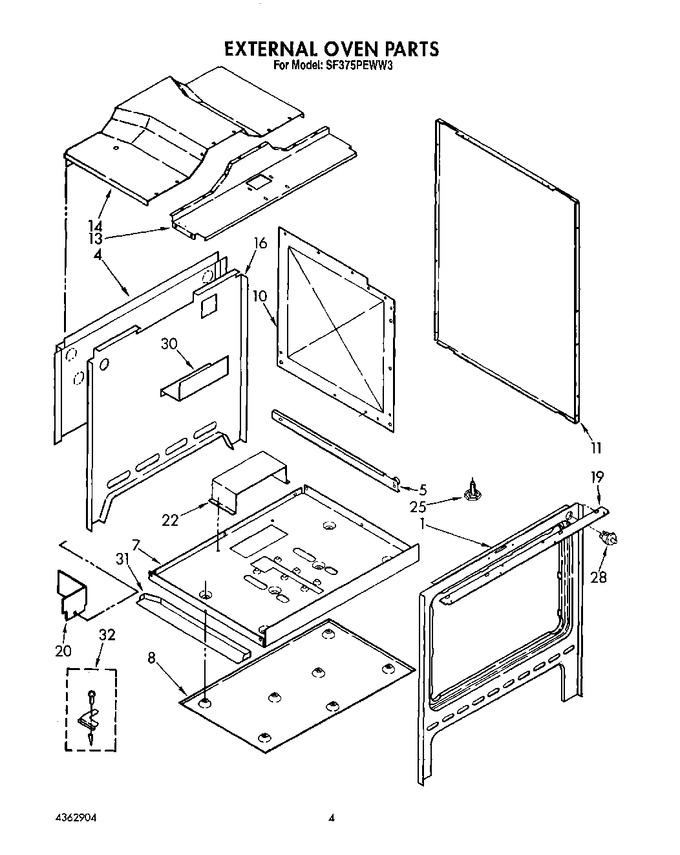

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786325		Screw (10)		Appelez-nous	-
1	4320374		Frame, Front		Appelez-nous	-
4	4320889		Retainer, Back		Appelez-nous	-
5	4315768		Track, Storage Drawer (left Side)		Appelez-nous	-
5	4315769		Track, Storage Drawer (right Side)		Appelez-nous	-
7	WP965173		Screw, 8 X 3/8 (9)   (Replaces: 786745)			Immediately	$ 9.65
7	4315770		Retainer, Bottom Insulation		Appelez-nous	-
8	786364		Heat Shield, Storage Drawer		Appelez-nous	-
10	4362922		Retainer, Insulation (2)		Appelez-nous	-
11	4362888		Panel, End (2)		Appelez-nous	-
11	4321097		Almond		Appelez-nous	-
11	4321094		White		Appelez-nous	-
11	4320862		Trim, End Panel		Appelez-nous	-
13	4362546		Retainer, Top Front Insulation		Appelez-nous	-
14	4320960		Retainer, Top Back Insulation		Appelez-nous	-
16	4362559		Rear Panel,		Appelez-nous	-
16	WP488130		Nut, Lock (4)   (Replaces: 786272)				$ 6.27
16	WP965173		Screw, 8 X 3/8 (2)   (Replaces: 786745)			Immediately	$ 9.65
16	786748		Nut, 6-32		Appelez-nous	-
16	WP486754		Screw, 6-32 X 3/8   (Replaces: 786749)				$ 6.75
16	4362820		Bushing, Snap		Appelez-nous	-
19	4362949		Frame, Filler Front		Appelez-nous	-
20	4315776		Plate, Cover		Appelez-nous	-
22	4320890		Cover, Burner		Appelez-nous	-
25	4315777		Leg, Leveling (4)		Appelez-nous	-
28	4179328		Switch,		Appelez-nous	-
30	4315779		Cover, Electrical		Appelez-nous	-
31	4362935		Brace, Bottom (l.h.)		Appelez-nous	-
31	4362956		Brace, Bottom (right)		Appelez-nous	-
32	4315756		Anti Tip Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
