SELECT A DIAGRAM

02 - Internal Oven


03 - Manifold


04 - External Oven


05 - Oven Door And Drawer


06 - Oven Electrical


07 - Backguard, Lit/optional


08 - Cooktop

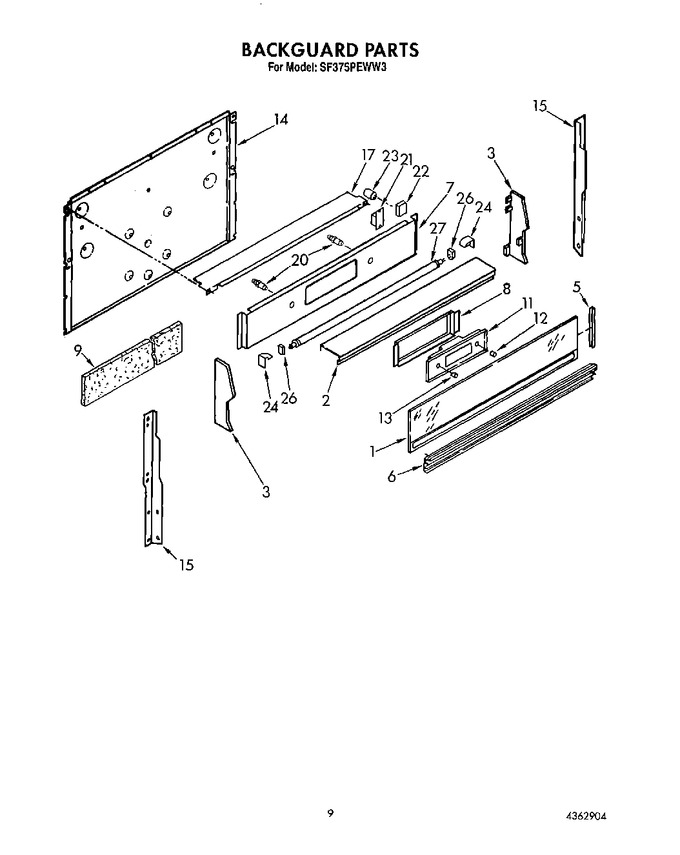

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4320782		Glass, Backguard		Appelez-nous	-
2	4320871		Trim, Backguard Top		Appelez-nous	-
3	4320872		End Cap (l.h.)		Appelez-nous	-
3	4320873		End Cap (r.h.)		Appelez-nous	-
5	786760		Channel, Glass		Appelez-nous	-
6	4320870		Trim, Lower		Appelez-nous	-
7	4320885		Panel, Control		Appelez-nous	-
8	4320878		Bracket, Clip		Appelez-nous	-
9	4315797		Insulation		Appelez-nous	-
11	4320811		Timer		Appelez-nous	-
12	4314999		Knob, Clock		Appelez-nous	-
13	4320905		Button, Set		Appelez-nous	-
14	4315785		Cover, Rear		Appelez-nous	-
15	4315795		Support, Backguard (r.h.)		Appelez-nous	-
15	4315796		Support, Backguard (l.h.)		Appelez-nous	-
17	4320974		Shield, Heat		Appelez-nous	-
20	4179335		Light, Indicator (2)		Appelez-nous	-
21	786540		Ballast, Light		Appelez-nous	-
22	786542		Socket, Light		Appelez-nous	-
23	786541		Starter, Light		Appelez-nous	-
24	786701		Bracket, Socket (l.h)		Appelez-nous	-
24	786702		Bracket, Socket (r.h.)		Appelez-nous	-
26	786536		Socket, Lamp		Appelez-nous	-
27	786539		Lamp		Appelez-nous	-
	LIT4320792		Guide, Use & Care		Appelez-nous	-
	LIT4362904		List, Repair Parts		Appelez-nous	-
	LIT4315710		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
