SELECT A DIAGRAM

Diagram for 01 - Blower, Air Inlet & Water Level Float
01 - Blower, Air Inlet & Water Level Float

Diagram for 02 - Control Panel (wu1005)
02 - Control Panel (wu1005)

Diagram for 03 - Door Assembly (wu1005)
03 - Door Assembly (wu1005)

Diagram for 04 - Front Panel & Access Panel (wu1005)
04 - Front Panel & Access Panel (wu1005)

Diagram for 05 - Installation Accessories (wu1005)
05 - Installation Accessories (wu1005)

Diagram for 06 - Installation Accessories (wu1005)
06 - Installation Accessories (wu1005)

Diagram for 07 - Pump & Motor Assembly (wu1005)
07 - Pump & Motor Assembly (wu1005)

Diagram for 08 - Racks (wu1005)
08 - Racks (wu1005)

Diagram for 09 - Rinse Dispenser Kit (wu1005)
09 - Rinse Dispenser Kit (wu1005)

Diagram for 10 - Tub Assembly (wu1005)
10 - Tub Assembly (wu1005)

Diagram for 11 - Tub Assembly Fastener Kits (wu1005)
11 - Tub Assembly Fastener Kits (wu1005)

Diagram for 12 - Tub Support (left) (wu1005)
12 - Tub Support (left) (wu1005)

Diagram for 13 - Tub Support (right) (wu1005)
13 - Tub Support (right) (wu1005)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 903038 Wire Harness 01 Appelez-nous -
1 902913 Wire Harness 00 Appelez-nous -
2 912006 Washer 00 Appelez-nous -
3 901434 Screw And Washer Assembly 00 Appelez-nous -
4 WP489128 Screw, Ground Wire To Base--na   (Replaces: 210186) 00 Special Order $ 9.79

5 902911 Transformer 00 Appelez-nous -
6 902916 Relay Assembly 00 Appelez-nous -
7 902912 Printed Circuit Board 00 Appelez-nous -
8 910309 Washer 00 Appelez-nous -
9 WP8281196 Screw   (Replaces: 912590) 00 In-Stock Immediately $ 6.47

10 902910 Control Panel W/inserts 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

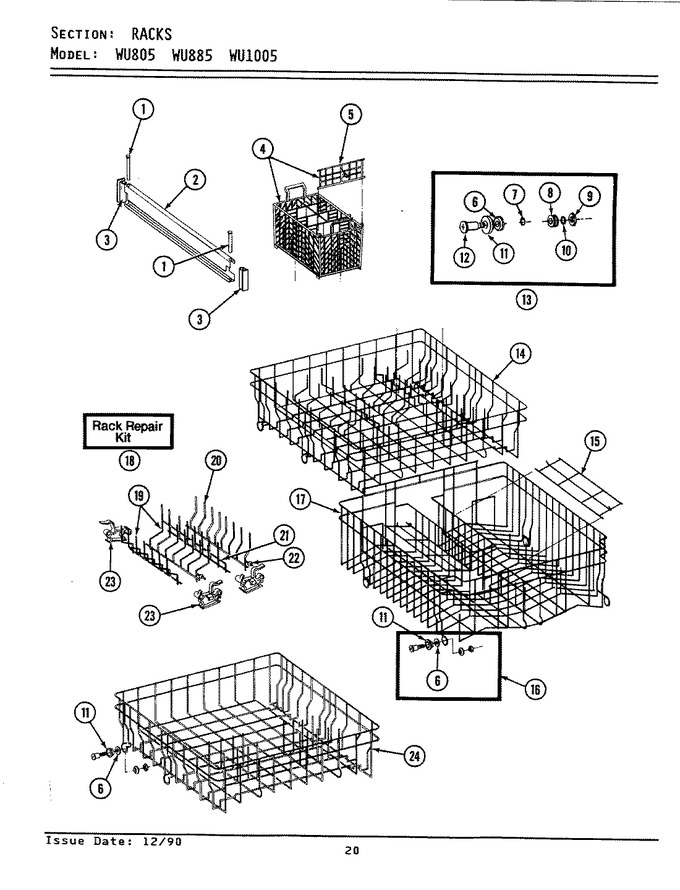

Diagram for WU1005
