SELECT A DIAGRAM

Diagram for 01 - Blower, Air Inlet & Water Level Float
01 - Blower, Air Inlet & Water Level Float

Diagram for 02 - Control Panel (wu1005)
02 - Control Panel (wu1005)

Diagram for 03 - Door Assembly (wu1005)
03 - Door Assembly (wu1005)

Diagram for 04 - Front Panel & Access Panel (wu1005)
04 - Front Panel & Access Panel (wu1005)

Diagram for 05 - Installation Accessories (wu1005)
05 - Installation Accessories (wu1005)

Diagram for 06 - Installation Accessories (wu1005)
06 - Installation Accessories (wu1005)

Diagram for 07 - Pump & Motor Assembly (wu1005)
07 - Pump & Motor Assembly (wu1005)

Diagram for 08 - Racks (wu1005)
08 - Racks (wu1005)

Diagram for 09 - Rinse Dispenser Kit (wu1005)
09 - Rinse Dispenser Kit (wu1005)

Diagram for 10 - Tub Assembly (wu1005)
10 - Tub Assembly (wu1005)

Diagram for 11 - Tub Assembly Fastener Kits (wu1005)
11 - Tub Assembly Fastener Kits (wu1005)

Diagram for 12 - Tub Support (left) (wu1005)
12 - Tub Support (left) (wu1005)

Diagram for 13 - Tub Support (right) (wu1005)
13 - Tub Support (right) (wu1005)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 912262 Spout Cap 00 Appelez-nous -
2 902354 Indicator, Level 00 Appelez-nous -
3 910170 Nut-fill Spout 00 Appelez-nous -
4 910069 Washer, Tub Top 00 Special Order $ 35.86

5 902355 Dispensing Valve 00 Appelez-nous -
6 UT076 Coil For Valve   (Replaces: 902358) 00 In-Stock Immediately $ 44.96


    View Diagram in Separate Window     Print Icon   Print Part List

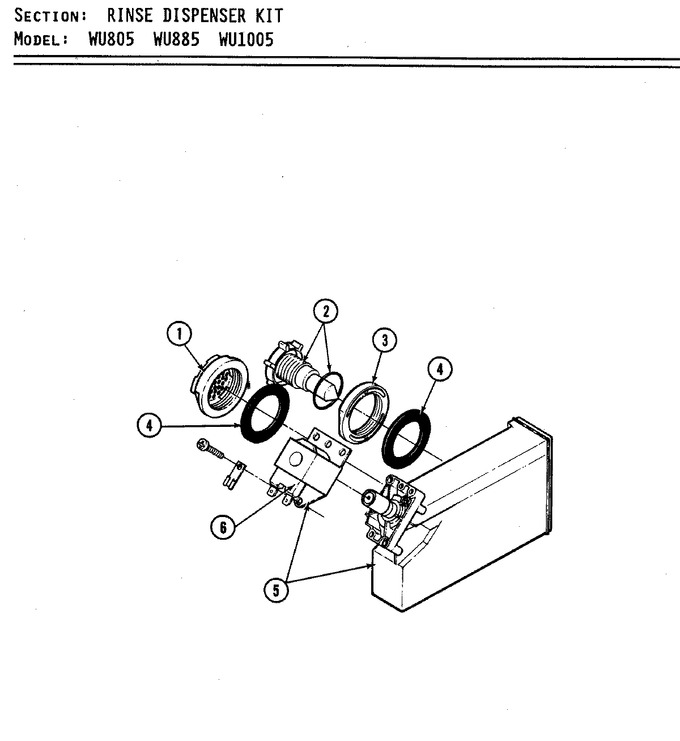

Diagram for WU1005
