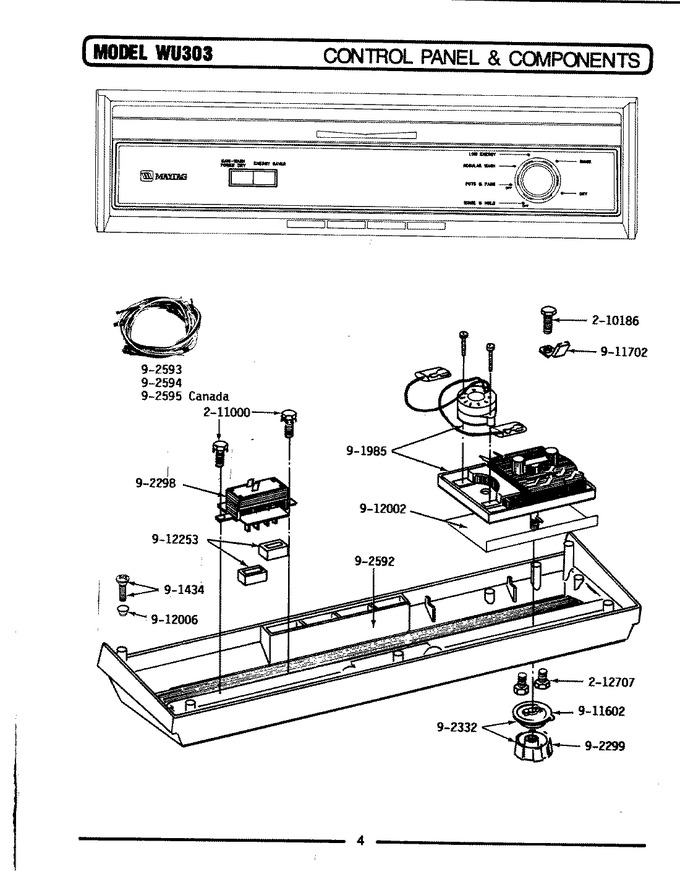

03 - Control Panel & Components (wu303)


04 - Door Assembly


05 - Front Panel & Access Panel


06 - Installation Accessories


07 - Pump Assembly


08 - Track & Rack Assembly


09 - Tub Assembly & Components


10 - Tub Supports, Base Frame, Motor & Valves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	00			$ 9.79
2	WP8281227		Screw,hex Head (brake Drum)   (Replaces: 211000)	00			$ 9.40
3	W11684507		Screw   (Replaces: 212707)	00			$ 12.23
4	901434		Screw And Washer Assembly	00	Appelez-nous	-
5	901985		Timer	00	Appelez-nous	-
6	902298		Switch, Control	00	Appelez-nous	-
7	902299		Timer Knob With Insert	00	Appelez-nous	-
8	EB680		Timer Knob & Dial   (Replaces: 902332)	00			$ 49.95
9	902592		Control Panel W/inserts	00	Appelez-nous	-
10	1/4SDCT		Wire Harness   (Replaces: 902593)	00			$ 135.15
11	5/16SDCT		Wire Harness   (Replaces: 902594)	00			$ 247.78
12	3/16SDCT		Wire Harness   (Replaces: 902595)	00			$ 3.11
13	911602		Timer Indicator Dial-chrome	00	Appelez-nous	-
14	911702		Ground Receptacle	00	Appelez-nous	-
15	912002		Barrier For Timer	00	Appelez-nous	-
16	912006		Washer	00	Appelez-nous	-
17	912253		Button For Switch	00	Appelez-nous	-
