SELECT A DIAGRAM

01 - Blower/air Inlet & Water Level Float


02 - Control Panel & Components (wu103)


03 - Control Panel & Components (wu303)


04 - Door Assembly

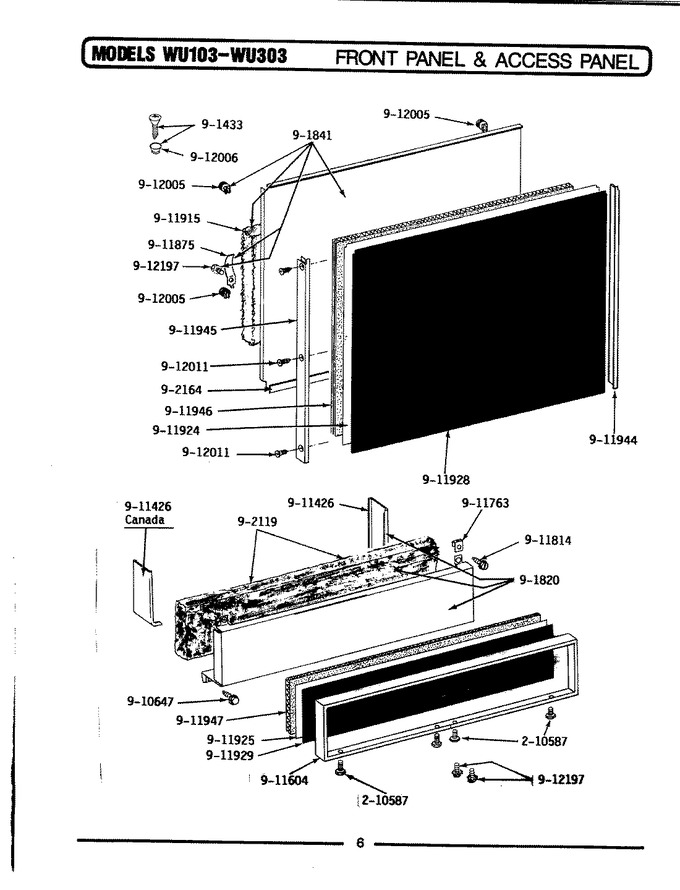

05 - Front Panel & Access Panel


06 - Installation Accessories


07 - Pump Assembly


08 - Track & Rack Assembly


09 - Tub Assembly & Components


10 - Tub Supports, Base Frame, Motor & Valves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw   (Replaces: 210587)	00		Immediately	$ 7.04
2	901433		Screw And Washer Assembly	00	Appelez-nous	-
3	901820		Access Panel Assembly	00	Appelez-nous	-
4	901837		Insert Kit-almond/harv Whea	00	Appelez-nous	-
5	901841		Front Panel Assembly	00	Appelez-nous	-
6	902119		Insulation For Access Panel	00	Appelez-nous	-
7	902163		Insert Kit-white/black	00	Appelez-nous	-
8	902164		Lower Trim Kit	00	Appelez-nous	-
9	W11233072		Screw   (Replaces: 910647)	00		Immediately	$ 12.62
10	911426		Access Panel Barrier	00	Appelez-nous	-
11	911604		Trim For Access Panel	00	Appelez-nous	-
12	911763		U Type Fastener	00	Appelez-nous	-
13	911814		Screw	00	Appelez-nous	-
14	911875		Grounding Clip	00	Appelez-nous	-
15	911915		Insulation For Front Panel	00	Appelez-nous	-
16	911924		Insert-almond/harvest Wheat	00	Appelez-nous	-
17	911925		Insert-almond/harvest Wheat	00	Appelez-nous	-
18	911928		Insert-white/black	00	Appelez-nous	-
19	911929		Insert-white/black	00	Appelez-nous	-
20	911944		Trim Strip - Right Hand	00	Appelez-nous	-
21	911945		Trim Strip - Left Hand	00	Appelez-nous	-
22	911946		Filler For Front Panel	00	Appelez-nous	-
23	911947		Filler For Access Panel	00	Appelez-nous	-
24	912005		Grommet	00	Appelez-nous	-
25	912006		Washer	00	Appelez-nous	-
26	912011		Screw----na	00	Appelez-nous	-
27	WP4312464		Screw   (Replaces: 912197)	00			$ 6.26

    View Diagram in Separate Window       Print Part List
