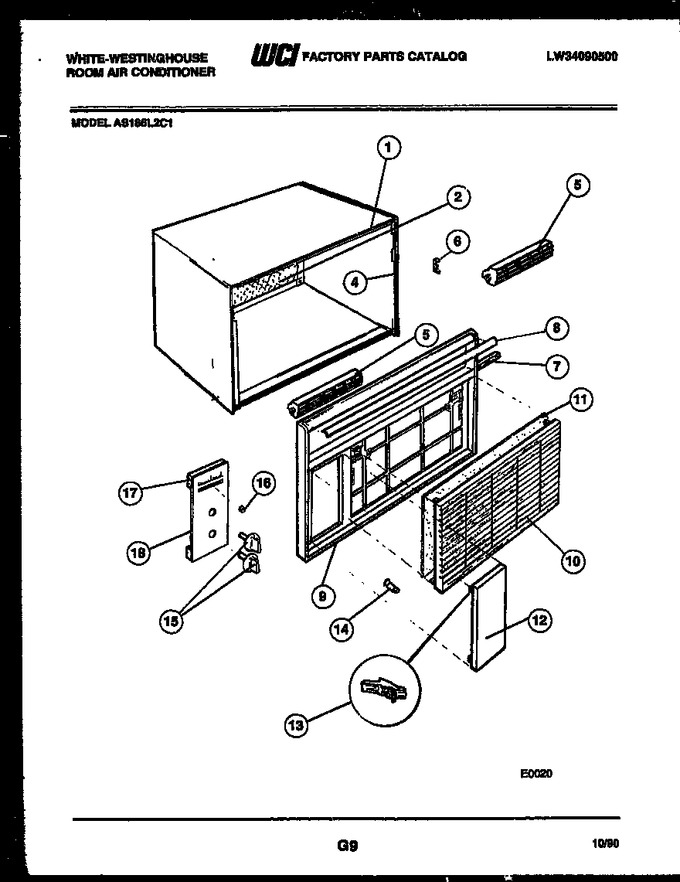

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Wrapper W/ Selas |
|
- | |||||
| 2 | 5303016831 | Grille Rear |
|
- | |||||
| 3 | 3018315 | Seal Top |
|
- | |||||
| 4 | 3018316 | Seal Sides |
|
- | |||||
| 5 | 5308017160 | Louver |
|
- | |||||
| 6 | 5308017263 | Retainer Louver |
|
- | |||||
| 7 | 08017259 | Seal Mullion |
|
- | |||||
| 8 | 5300344903 | Trim-front |
|
- | |||||
| 9 | 5303017075 | Frame Front |
|
- | |||||
| 10 | 5303016558 | Panel Front |
|
- | |||||
| 11 | 5300462101 | Filter Air |
|
- | |||||
| 12 | 3202502 | Door-front |
|
- | |||||
| 13 | 5303017980 | Hinge - Door |
|
- | |||||
| 14 | 5308010914 | Clip-front To Base |
|
- | |||||
| 15 | 5300331902 | Knob Control |
|
- | |||||
| 16 | 5303002189 | Knob-slide |
|
- | |||||
| 17 | 5300468801 | Plate Dial |
|
- | |||||
| 18 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 19 | 5300138101 | Nameplate |
|
- | |||||
| 18A | 5303001775 | Spacer-dial Plate (non-illustrated) |
|
- | |||||
| 4A | 5303207505 | Seal Rear Flange (non-illustrated) |
|
- | |||||
| 9A | 5300454302 | Front Complete |
|
- |
