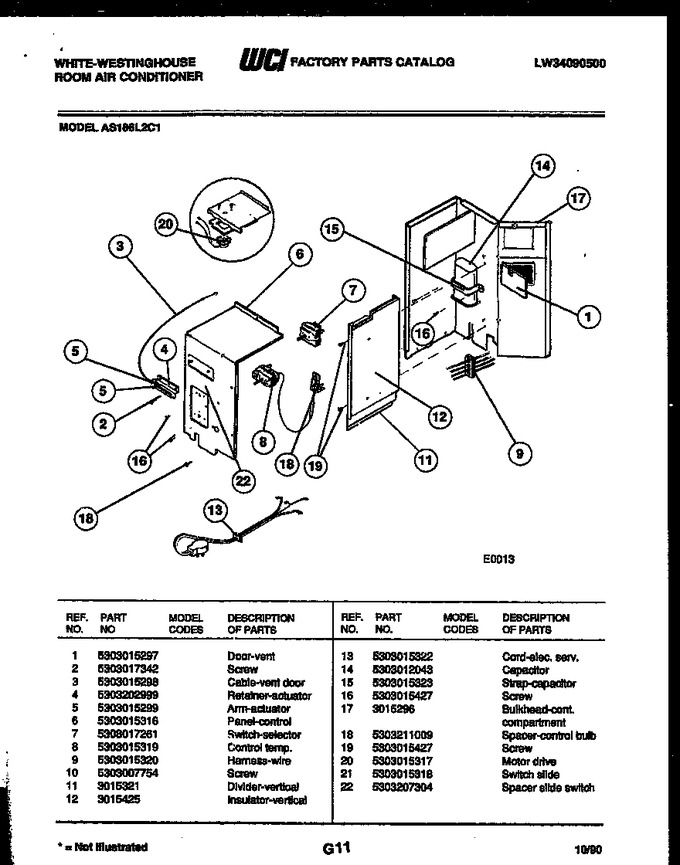

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015297 | Door-vent |
|
- | |||||
| 2 | 5303017342 | Screw |
|
- | |||||
| 3 | 5303015298 | Cable - Vent Door |
|
- | |||||
| 4 | 5303202999 | Retainer - Actuator |
|
- | |||||
| 5 | 5303015299 | Arm - Actuator |
|
- | |||||
| 6 | 5303015316 | Panel-control |
|
- | |||||
| 7 | 5308017261 | Switch-selector |
|
- | |||||
| 8 | 5303015319 | Control Temp |
|
- | |||||
| 9 | 5303015320 | Harness-wire |
|
- | |||||
| 10 | 5303007754 | Screw |
|
- | |||||
| 11 | 3015321 | Divider - Vertical |
|
- | |||||
| 12 | 3015425 | Insulator-vertical |
|
- | |||||
| 13 | 5303015322 | Cord-elec. Serv. |
|
- | |||||
| 14 | 5303012043 | Capacitor |
|
- | |||||
| 15 | 5303015323 | Strap-capacitor |
|
- | |||||
| 16 | 5303015427 | Screw |
|
- | |||||
| 17 | 3015296 | Bulkhead-cont Compartment |
|
- | |||||
| 18 | 5303211009 | Spacer-control Bulb |
|
- | |||||
| 19 | 5303015427 | Screw |
|
- | |||||
| 20 | 5303015317 | Motor-drive |
|
- | |||||
| 21 | 5303015318 | Switch-slide |
|
- | |||||
| 22 | 5303207304 | Spacer Slide Switch |
|
- |
