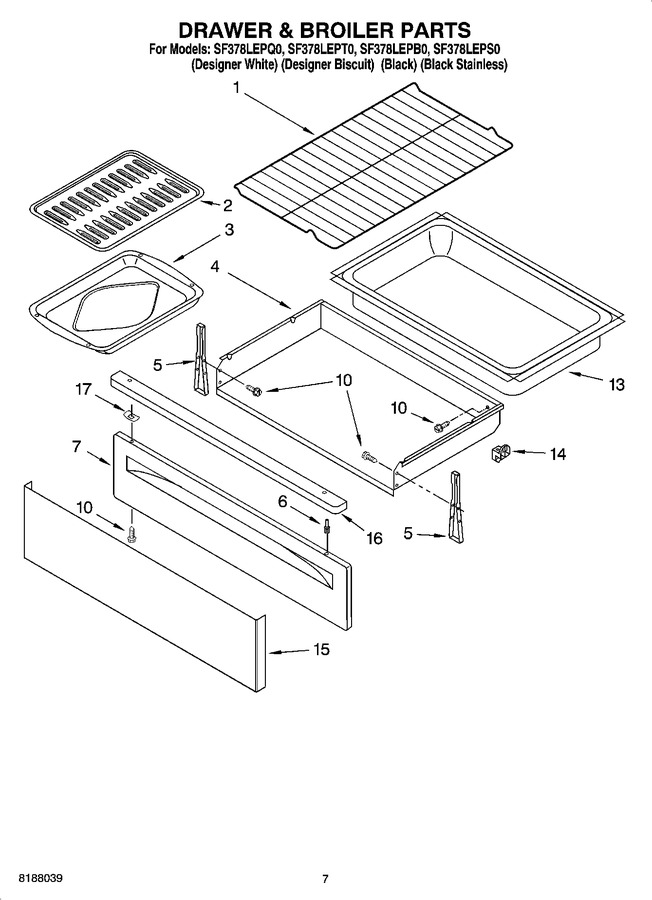

05 - Drawer & Broiler Parts


06 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: 3195710)			Immediately	$ 42.16
2	WP3195996		Grill, Broiler   (Replaces: 3195996)				$ 82.63
3	WP3196076		Pan, Broiler   (Replaces: 3196076)				$ 279.38
4	8272606		Drawer, Storage		Appelez-nous	-
5	W11759228		Bracket, Drawer (2)   (Replaces: 3196817)				$ 23.55
6	WP3196814		Rivet, Push (2) (white)   (Replaces: 3196814)			Immediately	$ 9.49
6	3196815		Rivet, Push (2) (almond)		Appelez-nous	-
6	WP3196813		Rivet, Push (2) (black)   (Replaces: 3196813)			Immediately	$ 9.60
7	W11230490		Panel, Drawer Front (black)   (Replaces: 8053338)				$ 181.36
7	W11230473		Panel, Drawer Front (biscuit)   (Replaces: 8272502)		Appelez-nous	-
7	W11230486		Panel, Drawer Front (white)   (Replaces: 8053336)				$ 181.28
10	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 6.98
13	8272528		Liner, Drawer		Appelez-nous	-
14	WP8053334		Spacer, Glide   (Replaces: 8053334)			Immediately	$ 7.06
15	9755797		Panel, Stainless		Appelez-nous	-
16	9757237		Handle, Stainless		Appelez-nous	-
17	WP9781235		Clip   (Replaces: 9781235)				$ 10.76
