Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8522434 Trim, Top (biscuit) Appelez-nous -
1 8522433 Trim, Top (white) Appelez-nous -
1 3196819 Trim, Top (black) Appelez-nous -
1 8272243 Trim, Top (stainless Model) Appelez-nous -
2 WP3196164 Screw   (Replaces: 3196164) In-Stock Immediately $ 7.82

3 WPW10202217 Handle, Door (black)   (Replaces: 3195922) Special Order $ 231.98

3 8522445 Handle, Door (biscuit) Appelez-nous -
3 WPW10202216 Handle, Door (white)   (Replaces: 8522444) Special Order $ 317.72

4 3186292 Liner, Door Appelez-nous -
6 WP8053948 Glass, Inner (2)   (Replaces: 9758162) Special Order $ 160.45

7 WPW10316950 Frame, Glass   (Replaces: 3186289) In-Stock Immediately $ 76.37

9 WPW10278991 Insulation, Door   (Replaces: 8272618) In-Stock Immediately $ 86.89

10 WP8053807 Hinge, Door   (Replaces: 8053807) Special Order $ 81.73

10 8272822 Stainless Model Special Order $ 71.88

11 W11539580 Retainer, Insul.   (Replaces: 3186297) Special Order $ 199.17

12 WP8523173 Trim, Door Side Left Hand (biscuit)   (Replaces: 8523173) Special Order $ 105.89

12 W10761018 Trim, Door Side Left Hand (black)   (Replaces: 8523171) In-Stock Immediately $ 48.39

12 WP8523172 Trim, Door Side Left Hand (white)   (Replaces: 8523172) In-Stock Immediately $ 62.94

12 WP8523167 Trim, Door Side Right Hand (biscuit)   (Replaces: 8523167) Special Order $ 102.09

12 W10761014 Trim, Door Side Right Hand (black)   (Replaces: 8523165) In-Stock Immediately $ 65.66

12 WP8523166 Trim, Door Side Right Hand (white)   (Replaces: 8523166) In-Stock Immediately $ 75.81

13 WPW10118455 Glass, Outer Door (black)   (Replaces: 9756414) In-Stock Immediately $ 285.17

13 WPW10118454 Glass, Outer Door (white)   (Replaces: 9756415) Special Order $ 278.50

13 9756416 Glass, Outer Door (biscuit) Appelez-nous -
13 9756435 Glass, Outer Door (stainless Model) Appelez-nous -
14 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 6.47

15 3196025 Clip, Door Glass Special Order $ 20.10

18 WP179051 Screw   (Replaces: 3196161) In-Stock Immediately $ 7.16

19 W11594186 Trim, Bottom (white)   (Replaces: 8523175) In-Stock Immediately $ 52.61

19 WP8523180 Trim, Bottom (stainless Model)   (Replaces: 8523180) Special Order $ 144.86

19 WP8523177 Trim, Bottom (black)   (Replaces: 8523177) In-Stock Immediately $ 142.16

19 WP8523178 Trim, Bottom (biscuit)   (Replaces: 8523178) Special Order $ 138.66

21 3196794 Bracket, Window Special Order $ 24.34

22 WP3196175 Screw   (Replaces: 3196165) In-Stock Immediately $ 6.47

23 3196925 Clip, Door Stop (2) Special Order $ 9.06

261582 Grease Appelez-nous -
WPW10208653 Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132) In-Stock Immediately $ 49.92

242823 Wire (14 Ga. 150 C Green) Appelez-nous -
242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
242825 Wire (14 Ga. 150 C Red) Appelez-nous -
242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23

242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
799832 Kit. Porcelain Repair (white) Appelez-nous -
8212471 Touch-up Self-clean(1/2 Pt)   (Replaces: 242756) In-Stock Immediately $ 74.76

WPW10208653 Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514) In-Stock Immediately $ 49.92

814381 Pin Kit-dr Removal   (Replaces: 3196897) Special Order $ 7.73

3196696 Clip, Harness Appelez-nous -
4392899 Paint, Touch-up (1/2oz.) (biscuit) In-Stock Immediately $ 23.81

3195927 Tie,wire Appelez-nous -
W11244557 Screw   (Replaces: 3196173) Special Order $ 12.25

16515 Clip, Harness   (Replaces: 313438) Special Order $ 17.60

3196896 Clip-wire Appelez-nous -
3400964 Clip, Wire   (Replaces: 3196520) Special Order $ 76.28

8523599 Harness, Wire (cooktop Spark) Special Order $ 125.63

350956 Paint, Pressurized Spray (12 Oz.) (almond) Special Order $ 46.30

4392901 Paint, Pressurized Spray (12oz.) (biscuit) Appelez-nous -
8524207 Harness, Bake & Broil Ignitor Special Order $ 52.99

72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 11.07

511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 44.36

8523424 Harness, Main (pyro) Appelez-nous -
8273888A Anti-tip Kit   (Replaces: 3176830) Special Order $ 27.96

241430 Foil, Aluminum Oven (18`` X 25`) Special Order $ 20.65

4392900 Paint, Bulk (1 Qt.) (biscuit) (uncut) Appelez-nous -
978883 Paint, Bulk (1 Qt.) (almond (uncut)) Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

350942 Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922) Special Order $ 80.69

285006 Paint, Pressurized Spray 12 Oz.) (superior Black) In-Stock Immediately $ 51.34

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 34.39

WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 16.12

N/A Miscellaneous Appelez-nous -
242828 Wire (12 Ga. 150 C Black) Appelez-nous -
242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
242830 Wire (14 Ga. 200 C Brown) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

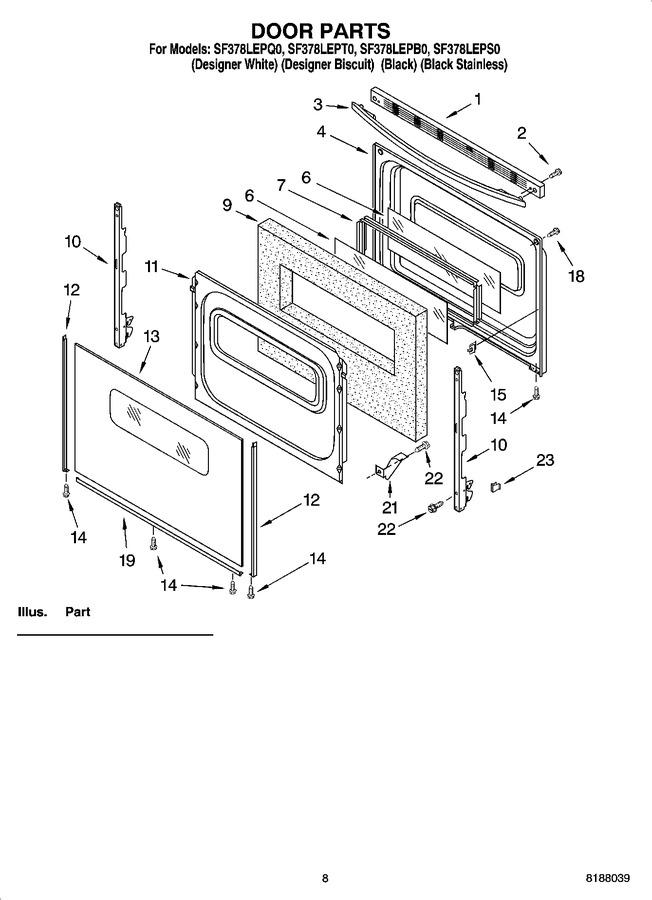

Diagram for SF378LEPT0
