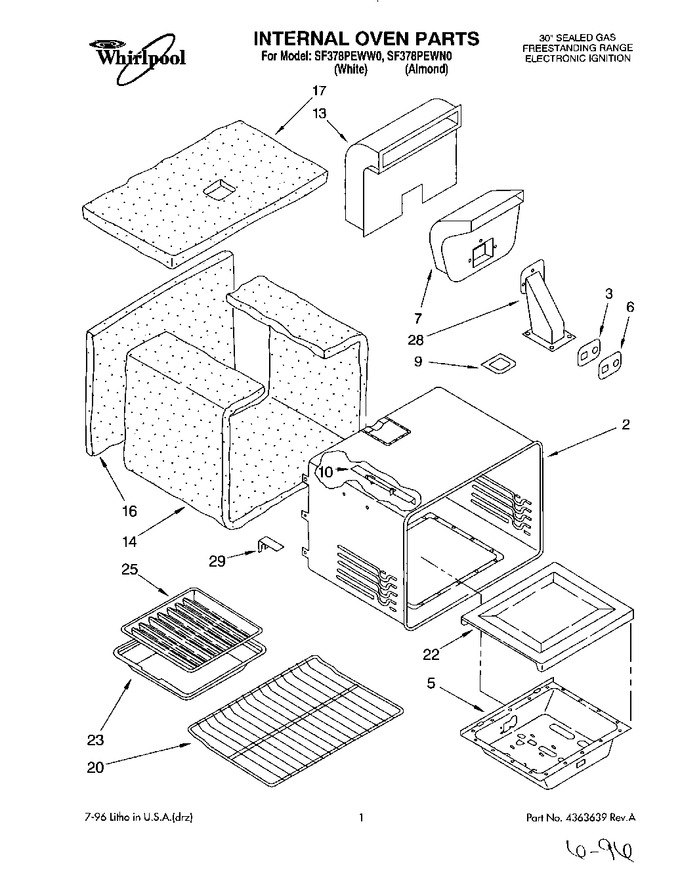

01 - Internal Oven


02 - External Oven


03 - Manifold


04 - Oven Electrical, Lit/optional


05 - Oven Door And Drawer


06 - Backguard


07 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4320923		Oven 30`` Self-clean		Appelez-nous	-
3	4320952		Plate, Burner Broil		Appelez-nous	-
5	786336		Burner, Box, Lower		Appelez-nous	-
6	4320944		Gasket, Plate		Appelez-nous	-
7	4320929		Flue, Inner		Appelez-nous	-
9	4320930		Gasket, Vent		Appelez-nous	-
10	786349		Shield, Thermostat		Appelez-nous	-
13	4320924		Flue, Dilution		Appelez-nous	-
14	WPW10208653		Insulation Wrapper   (Replaces: 786674)			Immediately	$ 49.92
16	WPW10208653		Insulation, Oven Back   (Replaces: 786675)			Immediately	$ 49.92
17	WPW10208653		Insulation, Oven Top   (Replaces: 786676)			Immediately	$ 49.92
20	786347		Rack, Oven (2)		Appelez-nous	-
22	4315114		Bottom, Oven		Appelez-nous	-
23	4363570		Pan, Broiler		Appelez-nous	-
25	4362695		Grid, Broiler		Appelez-nous	-
28	4320951		Vent		Appelez-nous	-
29	4320330		Bracket, Oven Shell		Appelez-nous	-
