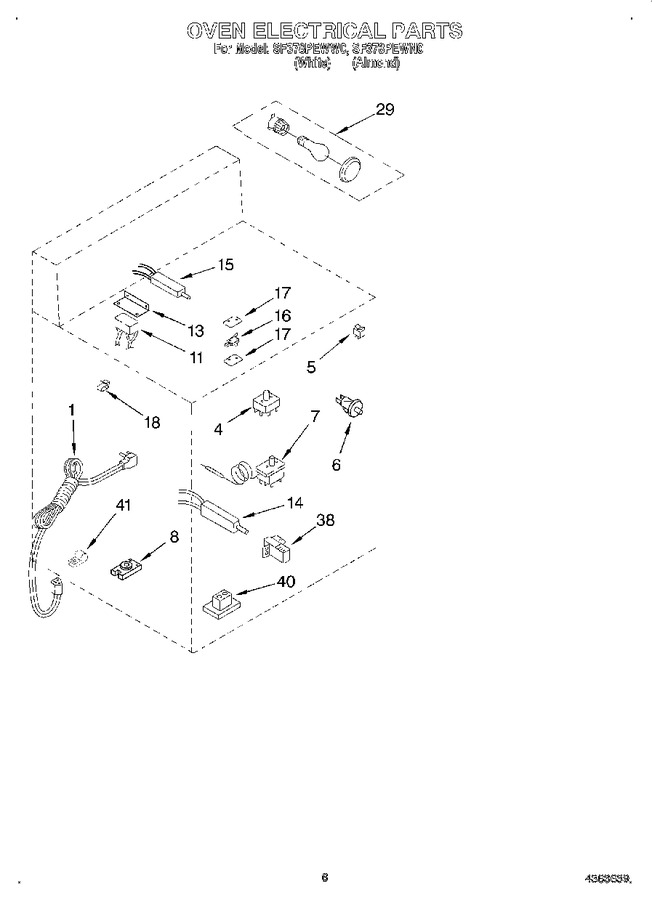

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363561		Cord, Power		Appelez-nous	-
4	4179076		Switch, Selector		Appelez-nous	-
5	786325		Switch, Rocker		Appelez-nous	-
6	4179328		Switch, Oven Light		Appelez-nous	-
7	4321095		Thermostat, Oven		Appelez-nous	-
8	4320326		Switch, Ignitor		Appelez-nous	-
11	4363536		Spark Module		Appelez-nous	-
13	4363548		Bracket, Spark Module		Appelez-nous	-
14	786324		Ignitor, Bake   (Replaces: 4363426)			Immediately	$ 60.68
15	4363531		Ignitor, Broil		Appelez-nous	-
16	4362916		Switch, Oven Door Latch		Appelez-nous	-
17	786751		Screw		Appelez-nous	-
17	786380		Insulator, Switch		Appelez-nous	-
18	4315780		Cable, Clip Esm		Appelez-nous	-
29	WP74011278		Assembly, Oven Light   (Replaces: 4320323)				$ 101.56
38	786801		Bracket, Bake Ignitor		Appelez-nous	-
40	4362620		Plug, Ignitor Wires		Appelez-nous	-
41	4157298		Clamp, Wire		Appelez-nous	-
41	WP965173		Screw   (Replaces: 4315342)			Immediately	$ 9.65
	LIT4363408		Guide, Use & Care		Appelez-nous	-
	LIT4363644		Diagram, Wiring		Appelez-nous	-
	LIT4363404		Instructions, Installation		Appelez-nous	-
