SELECT A DIAGRAM

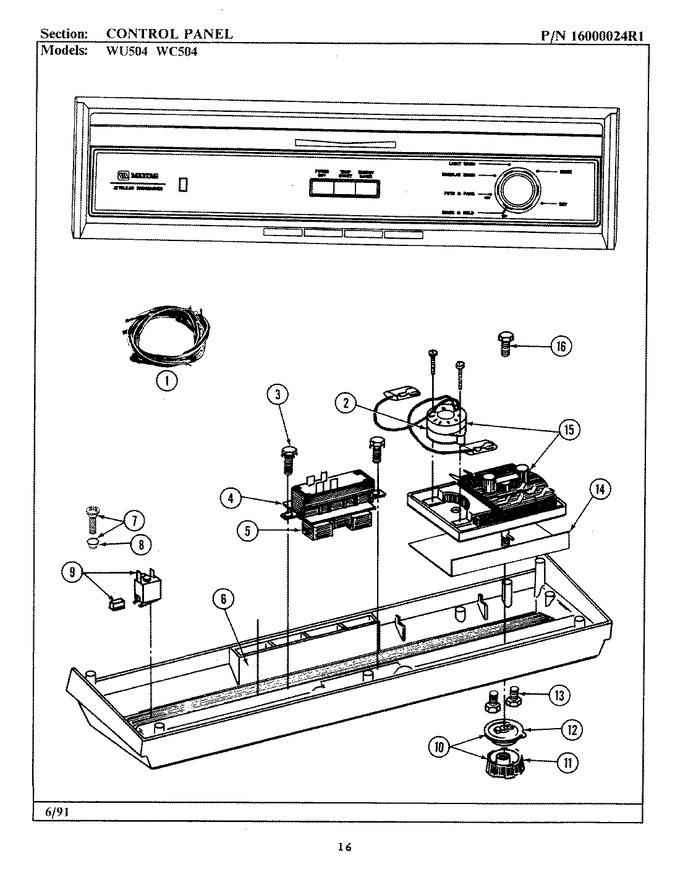

01 - Control Panel (wu504)


02 - Door Assembly


03 - Door Assembly (latch & Rinse Dispenser)


04 - Front & Access Panel


05 - Installation Accessories (sect. 1 Of 2)


06 - Installation Accessories (sect. 2 Of 2)


07 - Pump & Motor Assy.


08 - Racks


09 - Tub


10 - Tub Assembly


11 - Tub Support (left)


12 - Tub Support (right)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1777		Wire Harness   (Replaces: 902494)	00			$ 17.87
1	903027		Wire Harness	01	Appelez-nous	-
1	903021		Wire Harness	01	Appelez-nous	-
1	903016		Subharness	01	Appelez-nous	-
1	902518		Wire Harness	00	Appelez-nous	-
1	901996		Sub-wire Harness	00	Appelez-nous	-
2	901829		Timer Motor	00	Appelez-nous	-
3	WP8281227		Screw,hex Head (brake Drum)   (Replaces: 211000)	00			$ 9.40
4	902296		3 Button Control Switch	00	Appelez-nous	-
5	912253		Button For Switch	00	Appelez-nous	-
6	902761		Control Panel Assy	00	Appelez-nous	-
7	901434		Screw And Washer Assembly	00	Appelez-nous	-
8	912006		Washer	00	Appelez-nous	-
9	901636		Indicator Lamp	00	Appelez-nous	-
10	EB680		Timer Knob & Dial   (Replaces: 902332)	00			$ 49.95
11	902299		Timer Knob With Insert	00	Appelez-nous	-
12	911602		Timer Indicator Dial-chrome	00	Appelez-nous	-
13	W11684507		Screw   (Replaces: 212707)	00			$ 12.23
14	912002		Barrier For Timer	00	Appelez-nous	-
15	902468		Timer	00	Appelez-nous	-
16	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	00			$ 9.79

    View Diagram in Separate Window       Print Part List
