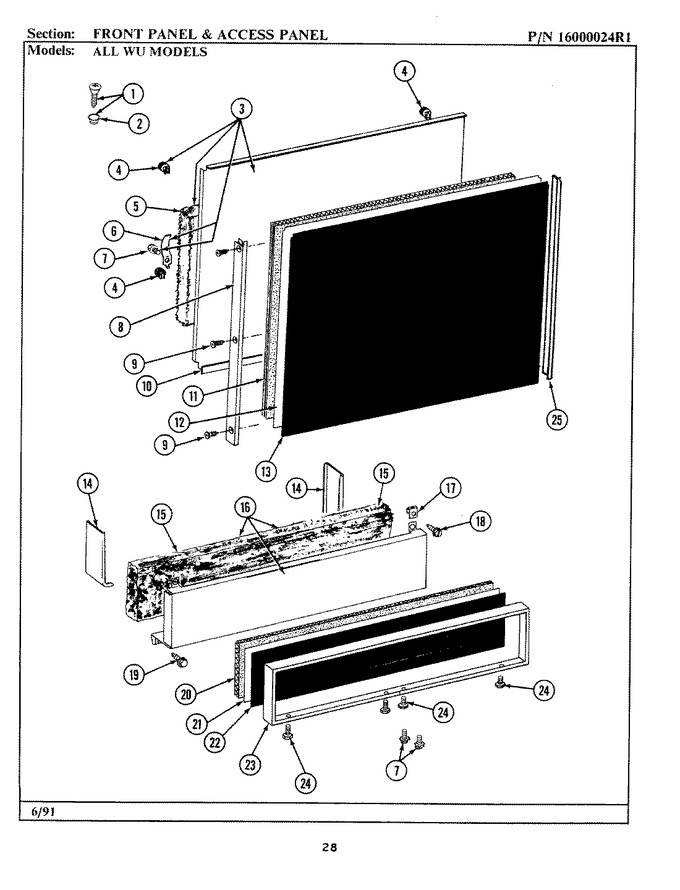

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 901433 | Screw And Washer Assembly | 00 |
|
- | ||||
| 2 | 912006 | Washer | 00 |
|
- | ||||
| 3 | 902887 | Front Panel | 00 |
|
- | ||||
| 4 | 912005 | Grommet | 00 |
|
- | ||||
| 5 | 912455 | Insulation, Door | 00 |
|
- | ||||
| 6 | 911875 | Grounding Clip | 00 |
|
- | ||||
| 7 | WP4312464 | Screw (Replaces: 912197) | 00 |
|
$ 6.26 | ||||
| 8 | 911945 | Trim Strip - Left Hand | 00 |
|
- | ||||
| 9 | 912011 | Screw----na | 00 |
|
- | ||||
| 10 | 902164 | Lower Trim Kit | 00 |
|
- | ||||
| 11 | 911946 | Filler For Front Panel | 00 |
|
- | ||||
| 12 | 911924 | Insert-almond/harvest Wheat | 00 |
|
- | ||||
| 13 | 911928 | Insert-white/black | 00 |
|
- | ||||
| 14 | 911426 | Access Panel Barrier | 00 |
|
- | ||||
| 15 | 912457 | Insulation, Access Panel | 00 |
|
- | ||||
| 16 | 902798 | Access Panel | 00 |
|
- | ||||
| 17 | 910646 | Fastener | 00 |
|
- | ||||
| 18 | 911814 | Screw | 00 |
|
- | ||||
| 19 | W11233072 | Screw (Replaces: 910647) | 00 |
|
Immediately | $ 12.62 | |||
| 20 | 911947 | Filler For Access Panel | 00 |
|
- | ||||
| 21 | 911925 | Insert-almond/harvest Wheat | 00 |
|
- | ||||
| 22 | 911929 | Insert-white/black | 00 |
|
- | ||||
| 23 | 911604 | Trim For Access Panel | 00 |
|
- | ||||
| 24 | WP90767 | Screw (Replaces: 210587) | 00 |
|
Immediately | $ 7.04 | |||
| 25 | 911944 | Trim Strip - Right Hand | 00 |
|
- |
