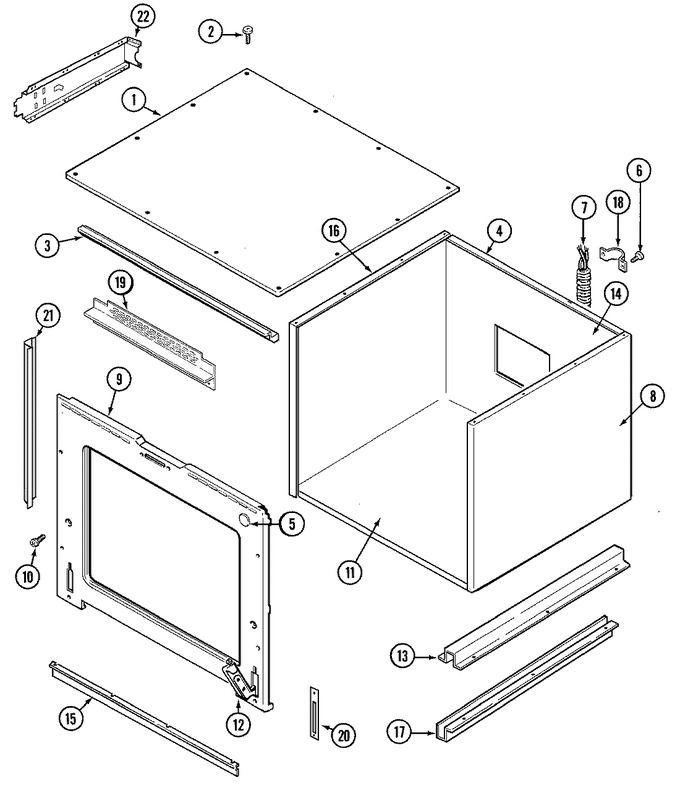

SELECT A DIAGRAM
01 - Blower Motor-convection
02 - Blower Motor-cooling
03 - Body
04 - Control Panel
05 - Door
06 - Internal Controls
07 - Oven
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001132 | Panel, Top (inner) | 11 |
|
- | ||||
| 1 | 04100616 | Panel, Outer Top | 11 |
|
- | ||||
| 1 | 71001134 | Panel, Top (inner) | 11 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 3 | 04100618 | Bracket, Top Support | 11 |
|
- | ||||
| 4 | 04100666 | Back, Outer | 11 |
|
- | ||||
| 4 | 04100665 | Back, Outer | 11 |
|
- | ||||
| 5 | 71001129 | Switch, Door Lock | 11 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: Y708310) | 11 |
|
Immediately | $ 6.85 | |||
| 7 | 71001147 | Wire Cable Assy. (lwr) | 11 |
|
- | ||||
| 8 | 04100558 | Panel, Side (rh) | 11 |
|
- | ||||
| 9 | 71001229 | Closure, Front (lwr) | 11 |
|
- | ||||
| 9 | 71003280 | Closure, Front (lwr) | 13 |
|
- | ||||
| 9 | 71001228 | Closure, Front (upr) | 11 |
|
- | ||||
| 9 | 71003279 | Closure, Front (upr) | 13 |
|
- | ||||
| 9 | 04100566 | Bracket | 11 |
|
- | ||||
| 10 | W11233072 | Screw (Replaces: Y708733) | 11 |
|
Immediately | $ 12.62 | |||
| 11 | 04100621 | Panel, Bottom | 11 |
|
- | ||||
| 12 | Y04100337 | Hinge, Oven Door | 11 |
|
- | ||||
| 13 | 04100563 | Rail, Support | 11 |
|
- | ||||
| 14 | 04100620 | Back, Inner | 11 |
|
- | ||||
| 15 | 04100625 | Trim (wht) | 11 |
|
- | ||||
| 15 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 11 |
|
Immediately | $ 12.62 | |||
| 16 | 702336 | Angle, Oven Support | 11 |
|
- | ||||
| 16 | 71001128 | Panel, Side (lt) | 11 |
|
- | ||||
| 17 | 700596 | Rail, Bottom | 11 |
|
- | ||||
| 18 | DE81-08030A | Clamp, Conduit (Replaces: 701692) | 11 |
|
$ 131.01 | ||||
| 19 | 71001136 | Extrusion, Center | 11 |
|
- | ||||
| 20 | 04100577 | Backplate, Hinge | 11 |
|
- | ||||
| 21 | 71001457 | Trim, Oven (rt/wht) | 11 |
|
- | ||||
| 21 | 71001462 | Trim, Oven (lt/wht) | 11 |
|
- | ||||
| 21 | 71001463 | Trim, Oven (rt/wht) | 11 |
|
- | ||||
| 21 | 71001456 | Trim, Oven (lt/wht) | 11 |
|
- | ||||
| 22 | Y04100669 | Support (ctr) | 11 |
|
- | ||||
| 23 | 04100670 | Shield, Capillary | 11 |
|
- |
