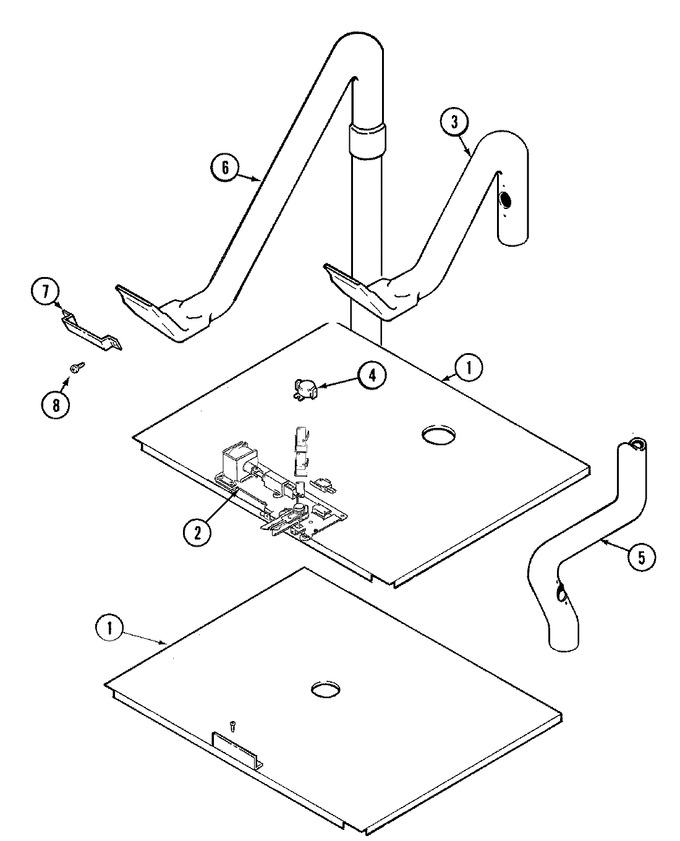

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100559 | Panel, Inner Top | 11 |
|
- | ||||
| 2 | 71001098 | Latch Assy. | 11 |
|
- | ||||
| 2 | 71001096 | Latch, Lower | 11 |
|
- | ||||
| 3 | 71001150 | Tube, Vent | 11 |
|
- | ||||
| 4 | 701687 | Thermostat | 11 |
|
- | ||||
| 5 | 71001123 | Tube, Vent (lwr) | 11 |
|
- | ||||
| 6 | 71001122 | Tube, Vent (upr) | 11 |
|
- | ||||
| 7 | 701680 | Bracket, Vent Tube | 11 |
|
- | ||||
| 8 | WP59002061 | Screw (Replaces: Y707172) | 11 |
|
$ 6.98 |
