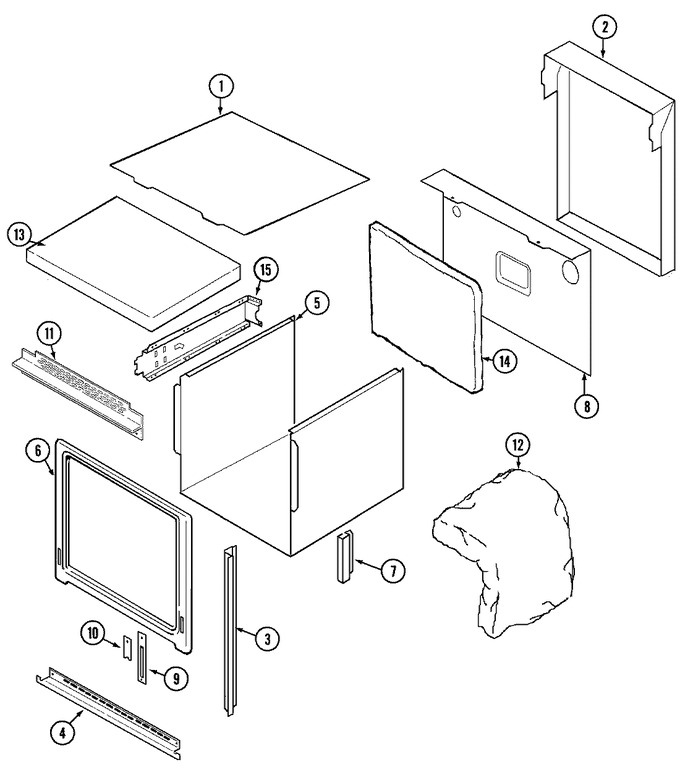

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 1 | 71001950 | Top (outer) | 11 |
|
- | ||||
| 2 | 71001878 | Back, Outer (upr) | 11 |
|
- | ||||
| 2 | 71001883 | Back, Outer (lwr) | 11 |
|
- | ||||
| 3 | WPY706189 | Screw (Replaces: Y706189) | 11 |
|
Immediately | $ 6.47 | |||
| 3 | 71001986 | Trim, Side (rt/blk) | 11 |
|
- | ||||
| 3 | 71001985 | Trim, Side (lt/blk) | 11 |
|
- | ||||
| 4 | 71001956 | Trim, Oven (lwr-blk) | 11 |
|
- | ||||
| 5 | 71001957 | Panel (side-btm-side) | 11 |
|
- | ||||
| 6 | 71003185 | Frame, Oven | 12 |
|
- | ||||
| 6 | 71001958 | Frame, Oven | 11 |
|
- | ||||
| 7 | WP74008015 | Receptacle, Hinge Assy. (Replaces: 71001828) | 11 |
|
$ 225.36 | ||||
| 8 | 71001959 | Back, Main (inner) | 11 |
|
- | ||||
| 9 | 71001815 | Plate, Hinge Cover | 11 |
|
- | ||||
| 10 | 71001812 | Plate, Hinge Trap | 11 |
|
- | ||||
| 11 | 71002142 | Extrusion, Center | 11 |
|
- | ||||
| 12 | 71001960 | Insulation (wrap) | 11 |
|
- | ||||
| 13 | 71001963 | Insulation (btm) | 11 |
|
- | ||||
| 14 | 71001962 | Insulation (back) | 11 |
|
- | ||||
| 15 | Y04100669 | Support (ctr) | 11 |
|
- |
