01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
New Model Search:

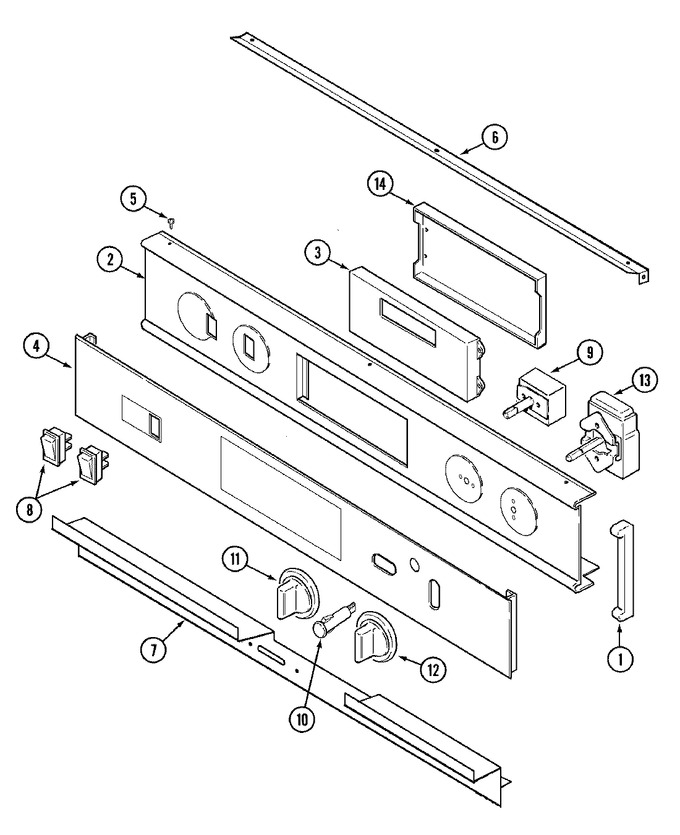

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001794 | End Cap, Panel (blk) | 11 |
|
- | ||||
| 2 | 71002121 | Panel, Control (blk) | 11 |
|
- | ||||
| 3 | 71002215CP | Clock (Replaces: 71002215) | 11 |
|
- | ||||
| 4 | 71002261 | Switch, Membrane (blk)----na | 11 |
|
- | ||||
| 5 | W10759523 | Screw (blk) (Replaces: 71002264) | 11 |
|
$ 5.71 | ||||
| 6 | 71001945 | Support, Control Panel | 11 |
|
- | ||||
| 7 | 71001946 | Trim, Control Panel (blk) | 11 |
|
- | ||||
| 7 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 11 |
|
Immediately | $ 12.62 | |||
| 8 | 7403P067-60 | Switch, Oven Light (blk) (Replaces: 71002136) | 11 |
|
$ 91.35 | ||||
| 9 | 71001127 | Switch, Selector----na | 11 |
|
- | ||||
| 10 | 71002141 | Light, Indicator | 11 |
|
- | ||||
| 11 | 71002132 | Knob, Selector (blk) | 11 |
|
- | ||||
| 12 | 71002134 | Knob, Thermostat (blk) | 11 |
|
- | ||||
| 13 | WP488234 | Screw (no.8-1/4``) (Replaces: 71002147) | 11 |
|
$ 6.07 | ||||
| 13 | 71002138 | Thermostat | 11 |
|
- | ||||
| 14 | 71002139 | Bracket, Clock | 11 |
|
- | ||||
| NI | 71002131 | Harness, Oven Light | 11 |
|
- | ||||
| NI | 71001861 | Harness, Convect | 11 |
|
- | ||||
| NI | 71002126 | Harness, Main Control | 11 |
|
- | ||||
| NI | 71002127 | Harness, Main Control (dbl) | 11 |
|
- | ||||
| NI | 71002128 | Harness, Door Switch (dbl) | 11 |
|
- | ||||
| NI | 71002130 | Harness, Relay Board | 11 |
|
- | ||||
| NI | 71002129 | Harness, Door Lock (dbl) | 11 |
|
- | ||||
| NI | 71002216 | Manual, Use & Care | 11 |
|
- | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | 11 |
|
- |
