01 - Blower Motor (convection)
02 - Blower Motor (cooling)
03 - Body
04 - Control Panel
05 - Internal Controls
06 - Oven
SELECT A DIAGRAM
New Model Search:

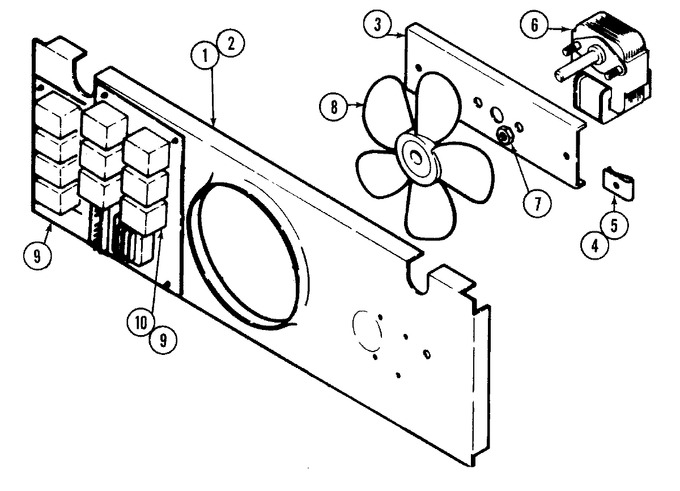

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100560 | Shroud, Fan | 11 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 715773) | 11 |
|
Immediately | $ 7.04 | |||
| 3 | Y704732 | Mount, Motor | 11 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 5 | Y700556 | Clip, J | 11 |
|
- | ||||
| 6 | Y701721 | Motor, Fan | 11 |
|
- | ||||
| 7 | M0282005 | Nut, Hex (Replaces: 701719) | 11 |
|
$ 7.07 | ||||
| 8 | 702944 | Blade, Fan | 11 |
|
- | ||||
| 9 | Y04100261 | Relay | 11 |
|
$ 185.03 | ||||
| 9 | Y704706 | Support, Circuit Board | 11 |
|
- | ||||
| 10 | Y715957 | Foam, Urethane | 11 |
|
- | ||||
| 10 | Y04100260 | Relay, Transformer Assy. | 11 |
|
$ 209.32 | ||||
| 10 | 704973 | Wire, Orange | 11 |
|
- | ||||
| 10 | 705031 | Harness, Wire | 11 |
|
- |
