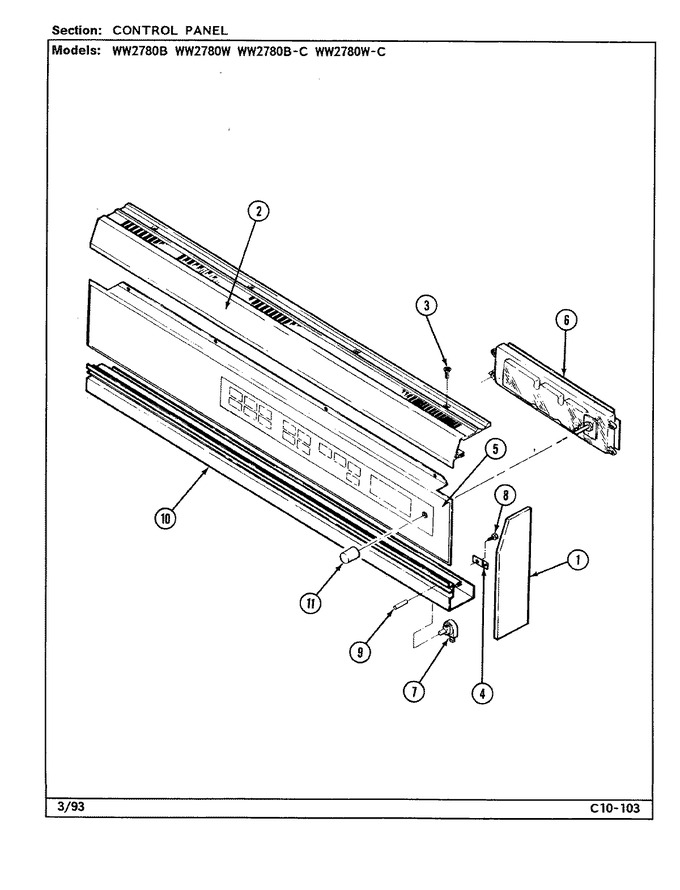

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 705014 | Cap, End (lt/wht) | 11 |
|
- | ||||
| 1 | 705015 | Cap, End (rt/wht) | 11 |
|
- | ||||
| 2 | 04100595 | Top, Extrusion (wht) | 11 |
|
- | ||||
| 3 | 704714 | Screw, Trim | 11 |
|
- | ||||
| 4 | 701609 | Angle, Attachment | 11 |
|
- | ||||
| 5 | 704709 | Harness, Wire Lower | 11 |
|
$ 763.44 | ||||
| 5 | Y712598 | Control Panel & Back Assy | 11 |
|
- | ||||
| 5 | 704704 | Harness, Wire (j2) | 11 |
|
- | ||||
| 6 | Y04100264 | Timer, Electronics | 11 |
|
- | ||||
| 7 | Y705011 | Switch, Push (alum) | 11 |
|
- | ||||
| 7 | 704730 | Bracket, Switch | 11 |
|
- | ||||
| 8 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 9 | 705010 | Extension, Switch (wht) | 11 |
|
- | ||||
| 10 | 04100593 | Bottom, Extrusion (wht)----na | 11 |
|
- | ||||
| 11 | WP7711P492-60 | Knob, Clock (lg-gry) ?? (Replaces: Y704485) | 11 |
|
$ 12.13 | ||||
| NI | 704799 | Harness, Wire (lwr) | 11 |
|
- | ||||
| NI | OU2780UA | Manual, Use & Care | 11 |
|
- | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | 11 |
|
- | ||||
| NI | 704822 | Harness, Probe | 11 |
|
- | ||||
| NI | 704800 | Harness, Wire (upr) | 11 |
|
- |
