02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Unit Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

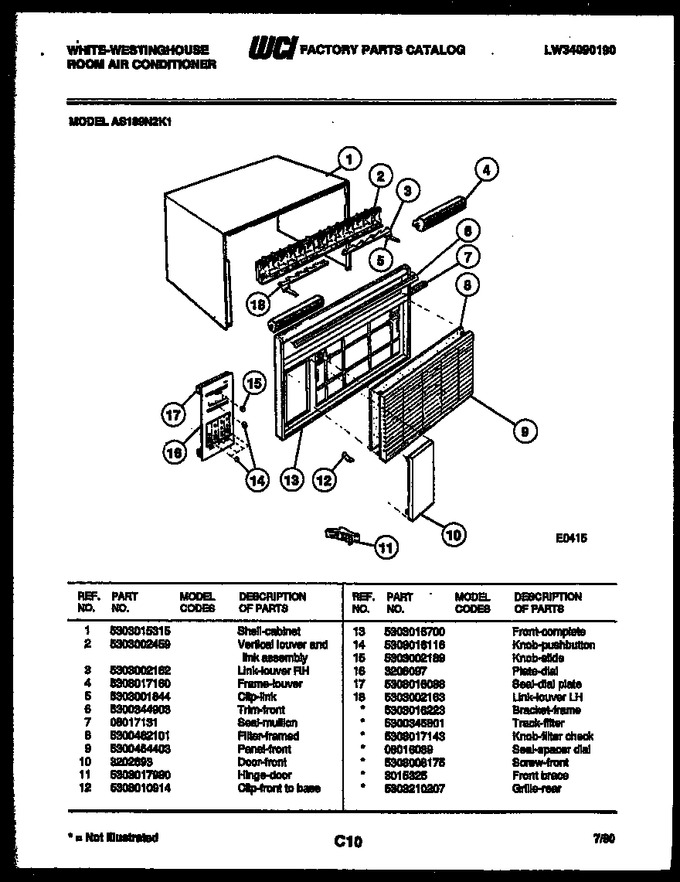

| 1 | 5303015315 | Shell-cabinet |
|
- | |||||
| 2 | 5303002459 | Vertical Louver And Link Assembly |
|
- | |||||
| 3 | 5303002162 | Link-louver Rh |
|
- | |||||
| 4 | 5308017160 | Frame-louver |
|
- | |||||
| 5 | 5303001844 | Clip-link |
|
- | |||||
| 6 | 5300344903 | Trim-front |
|
- | |||||
| 7 | 08017131 | Seal-mullion |
|
- | |||||
| 8 | 5300462101 | Filter-framed |
|
- | |||||
| 9 | 5300454403 | Panel-front |
|
- | |||||
| 10 | 3202693 | Door-front |
|
- | |||||
| 11 | 5303017980 | Hinge - Door |
|
- | |||||
| 12 | 5308010914 | Clip-front To Base |
|
- | |||||
| 13 | 5303016700 | Front-complete |
|
- | |||||
| 14 | 5308016116 | Knob-push Button |
|
- | |||||
| 15 | 5303002189 | Knob-slide |
|
- | |||||
| 16 | 3206097 | Plate-dial |
|
- | |||||
| 17 | 5308016088 | Seal-dial Plate |
|
- | |||||
| 18 | 5303002163 | Link-louver Lh |
|
- | |||||
| *33566 | 3015325 | Front Brace |
|
- | |||||
| *33566 | 5308008175 | Screw-front |
|
- | |||||
| *33566 | 08016089 | Seal-spacer Dial |
|
- | |||||
| *33566 | 5308017143 | Knob-filter Check |
|
- | |||||
| *33566 | 5300345801 | Track-filter |
|
- | |||||
| *33566 | 5303016223 | Bracket-frame |
|
- | |||||
| *33567 | 5303210207 | Grille-rear |
|
- |
