02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts

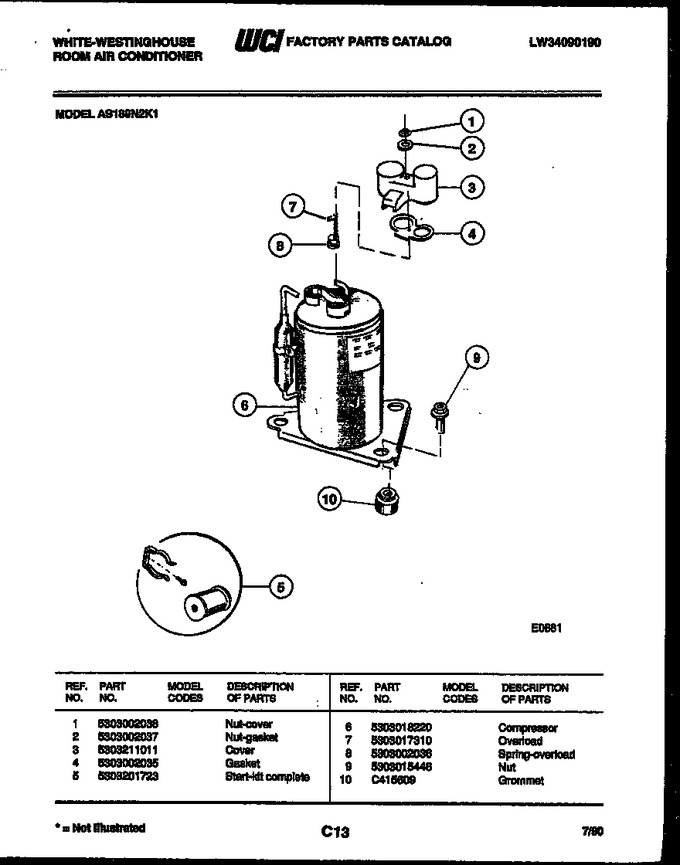

05 - Compressor Parts
06 - Unit Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303002038 | Nut-cover |
|
- | |||||
| 2 | 5303002037 | Nut-gasket |
|
- | |||||
| 3 | 5303211011 | Cover |
|
- | |||||
| 4 | 5303002035 | Gasket |
|
- | |||||
| 5 | 5303201723 | Start-kit Complete |
|
- | |||||
| 6 | 5303018220 | Compressor |
|
- | |||||
| 7 | 5303017310 | Overload |
|
- | |||||
| 8 | 5303002036 | Spring-overload |
|
- | |||||
| 9 | 5303015446 | Nut |
|
- | |||||
| 10 | C415609 | Grommet |
|
- |
