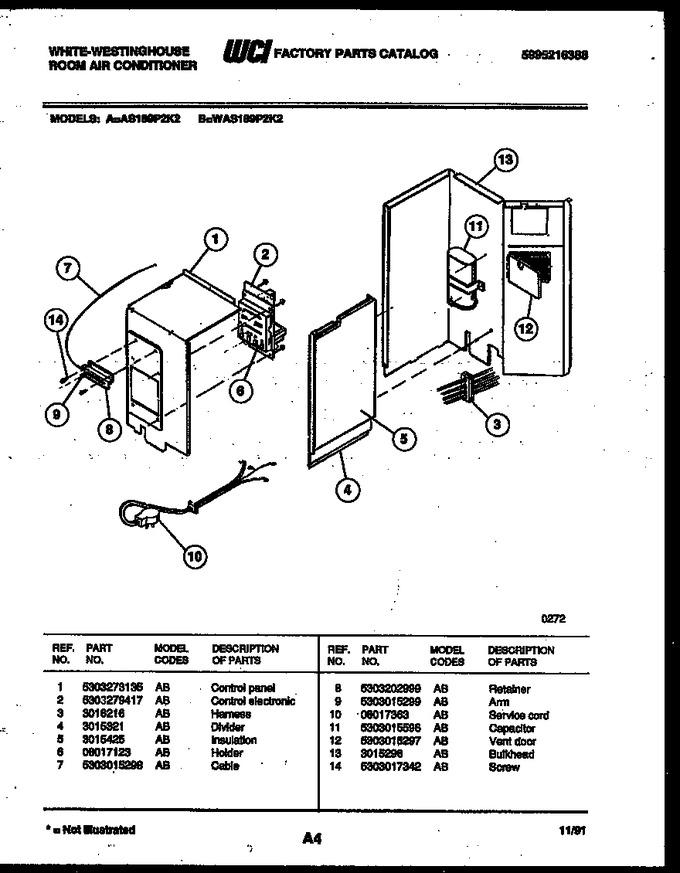

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303273135 | Control Panel |
|
- | |||||
| 2 | 5303279417 | Control Electronic |
|
- | |||||
| 3 | 3016216 | Harness |
|
- | |||||
| 4 | 3015321 | Divider |
|
- | |||||
| 5 | 3015425 | Insulation |
|
- | |||||
| 6 | 08017123 | Holder |
|
- | |||||
| 7 | 5303015298 | Cable |
|
- | |||||
| 8 | 5303202999 | Retainer |
|
- | |||||
| 9 | 5303015299 | Arm |
|
- | |||||
| 10 | 08017363 | Service Cord |
|
- | |||||
| 11 | 5303015596 | Capacitor |
|
- | |||||
| 12 | 5303015297 | Vent Door |
|
- | |||||
| 13 | 3015296 | Bulkhead |
|
- | |||||
| 14 | 5303017342 | Screw |
|
- |
