New Model Search:

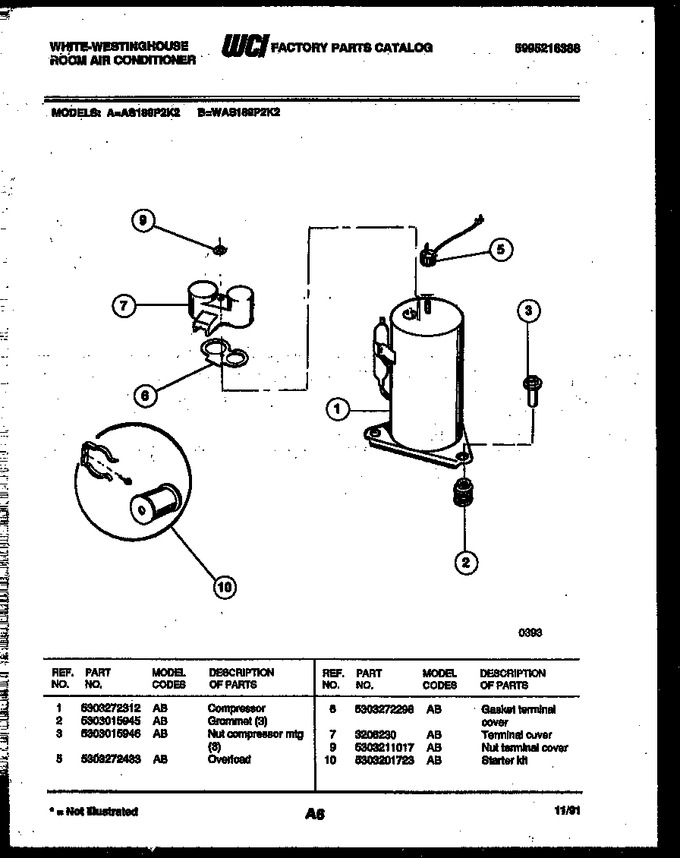

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303272312 | Compressor |
|
- | |||||
| 2 | 5303015945 | Grommet (3) |
|
- | |||||
| 3 | 5303015946 | Nut Compressor Mtg (3) |
|
- | |||||
| 5 | 5303272433 | Overload |
|
- | |||||
| 6 | 5303272298 | Gasket Terminal Cover |
|
- | |||||
| 7 | 3206230 | Terminal Cover |
|
- | |||||
| 9 | 5303211017 | Nut,terminal Cover |
|
- | |||||
| 10 | 5303201723 | Starter Kit |
|
- |
