Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13664 Sidepiece,l.h. Appelez-nous -
2 13727 Assy,p.c. Board Appelez-nous -
3 13728 Assy,p.c. Board Appelez-nous -
4 13667 Cover,p.c. Board Special Order $ 957.05

5 13729 Board,switch Appelez-nous -
6 13726 Switch Appelez-nous -
7 Y00000000 See Note Ground Wire, Green Appelez-nous -
8 13663 Sidepiece,r.h. Appelez-nous -
9 13661 Base,panel Appelez-nous -
10 13725 Plate,control Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

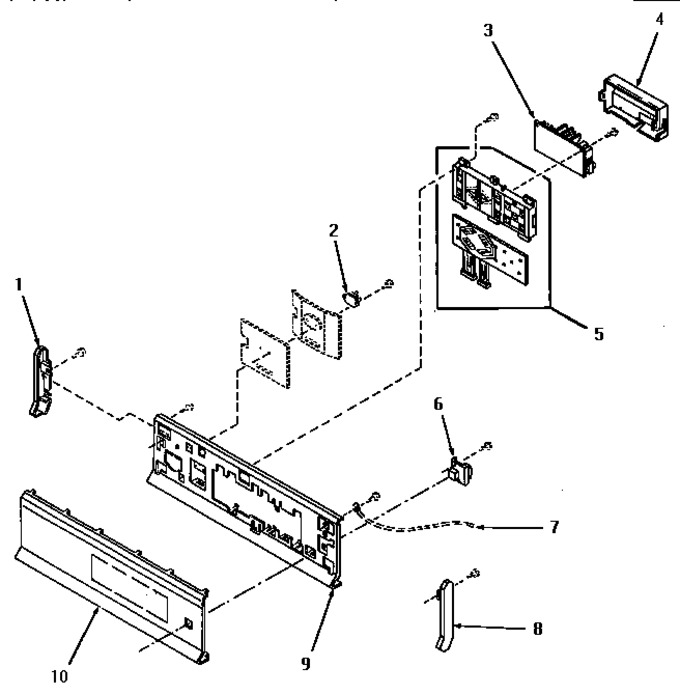

Diagram for YE1243
