SELECT A DIAGRAM

Diagram for 01 - Cabinet Assy, Rear Panel And Power Cord
01 - Cabinet Assy, Rear Panel And Power Cord

Diagram for 02 - Cabinet Top
02 - Cabinet Top

Diagram for 03 - Control Panel And Controls
03 - Control Panel And Controls

Diagram for 04 - Duct Assy, Casing And Fan
04 - Duct Assy, Casing And Fan

Diagram for 05 - Heating Element And Heater Case
05 - Heating Element And Heater Case

Diagram for 06 - Lint Filter And Drum Assy
06 - Lint Filter And Drum Assy

Diagram for 07 - Loading Door
07 - Loading Door

Diagram for 08 - Motor And Base
08 - Motor And Base


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13673L Door,loading Appelez-nous -
2 13818 No Longer Available Appelez-nous -
3 13817 Switch,button Appelez-nous -
4 13676 Seal,door Special Order $ 30.62

5 13671 Latch,door Appelez-nous -
6 Y00000000 See Note Cabinet Assembly Appelez-nous -
7 13675 Screw Appelez-nous -
8 13674 Hinge,door Appelez-nous -
9 13825L Handle,door Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

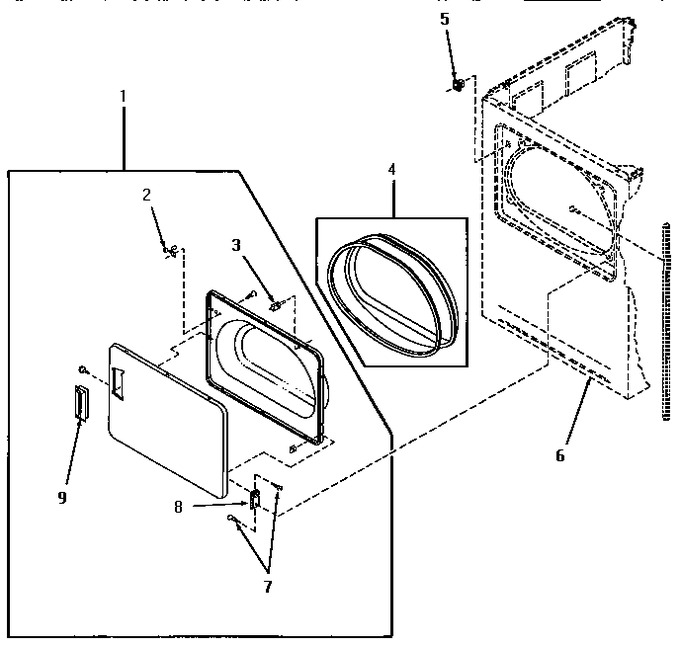

Diagram for YE1243
