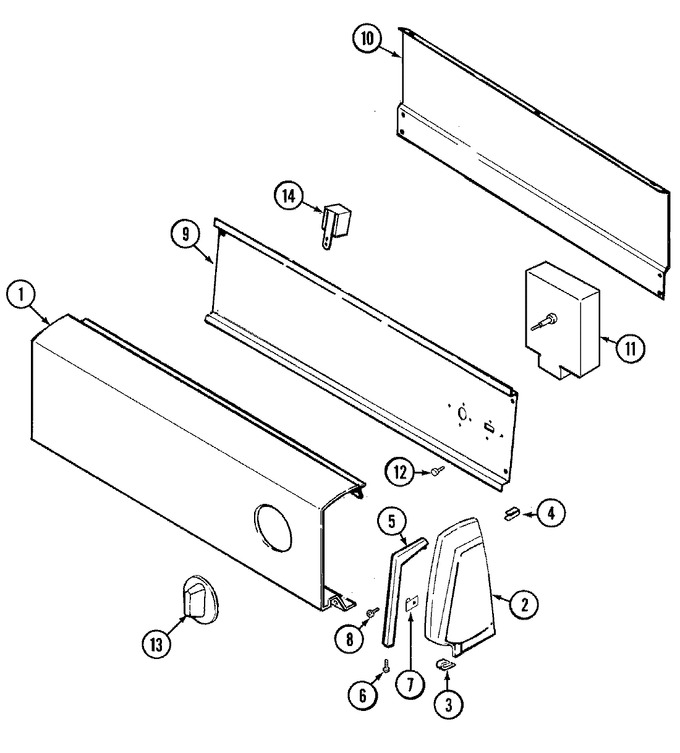

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31001097 | Panel, Control | 10 |
|
- | ||||
| 2 | 35-2488 | Cap, End (lt) | 10 |
|
- | ||||
| 2 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | 10 |
|
- | ||||
| 2 | 25-7649 | Screw | 10 |
|
- | ||||
| 2 | 35-2487 | Cap, End (rt) | 10 |
|
- | ||||
| 3 | 25-7851 | Speedclip, End Cap To Top | 10 |
|
- | ||||
| 3 | 25-7691 | Screw, End Cap To Top | 10 |
|
- | ||||
| 4 | 25-7852 | Speedclip, Rr Shld To End Cap | 10 |
|
- | ||||
| 4 | WP33002917 | Screw (Replaces: 25-7435) | 10 |
|
Immediately | $ 6.90 | |||
| 5 | 53-0279 | Trim, End Cap (rt) | 10 |
|
- | ||||
| 5 | 53-0280 | Trim, End Cap (lt) | 10 |
|
- | ||||
| 6 | 25-7760 | Screw | 10 |
|
- | ||||
| 7 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | 10 |
|
- | ||||
| 8 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 9 | 53-1676 | Shield, Control | 10 |
|
- | ||||
| 9 | 53-2504 | Spacer, Control Shield | 10 |
|
- | ||||
| 10 | 35-2688 | Shield, Control Panel (rear) | 10 |
|
- | ||||
| 11 | 31001108 | Timer | 10 |
|
- | ||||
| 11 | 63-6743 | Resistor Assy. | 10 |
|
- | ||||
| 12 | WP90767 | Screw (Replaces: 31001119) | 10 |
|
Immediately | $ 7.04 | |||
| 13 | 53-2501 | Knob & Skirt Assy | 10 |
|
- | ||||
| 14 | 53-1639 | Buzzer Assy. | 10 |
|
- | ||||
| 14 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 15 | 31001130 | Manual, Use & Care | 10 |
|
- | ||||
| 16 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
