SELECT A DIAGRAM
01 - Cabinet
02 - Control Panel
03 - Door
04 - Heater
05 - Motor & Drive
06 - Tumbler
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

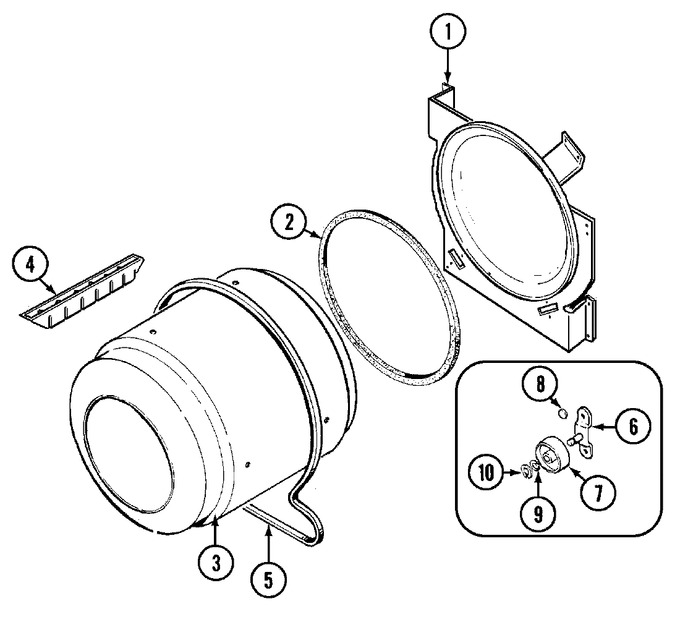

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw (Replaces: 25-7733) | 10 |
|
Immediately | $ 7.07 | |||
| 1 | 53-1703 | Bulkhead W/o Cylinder Light Gr | 10 |
|
- | ||||
| 2 | WP31001747 | Seal Assy (white) (Replaces: 53-0281) | 10 |
|
$ 30.87 | ||||
| 3 | 53-0178 | Tumbler Assy. | 10 |
|
- | ||||
| 4 | WP3196164 | Screw (Replaces: 25-7759) | 10 |
|
Immediately | $ 7.82 | |||
| 4 | 53-0117 | Baffle, Gray | 10 |
|
- | ||||
| 5 | 341241 | Belt (Replaces: 31001026) | 10 |
|
Immediately | $ 16.34 | |||
| 6 | WP53-0197 | Support Assy.-cylinder Rear (Replaces: 53-0197) | 10 |
|
$ 81.21 | ||||
| 6 | WP3351614 | Screw (Replaces: 25-7101) | 10 |
|
Immediately | $ 6.26 | |||
| 7 | 53-1578 | Cyl Roller | 10 |
|
- | ||||
| 8 | 25-7813 | Spacer | 10 |
|
- | ||||
| 9 | 25-7814 | Washer | 10 |
|
$ 5.33 | ||||
| 10 | WP25-7854 | Ring, Retaining (Replaces: 25-7854) | 10 |
|
$ 10.68 | ||||
| 11 | LA-1008 | Rr Roller Kit | 10 |
|
$ 66.73 | ||||
| 12 | LA-1006 | Glide Kit, Tumbler | 10 |
|
Immediately | $ 25.12 |
