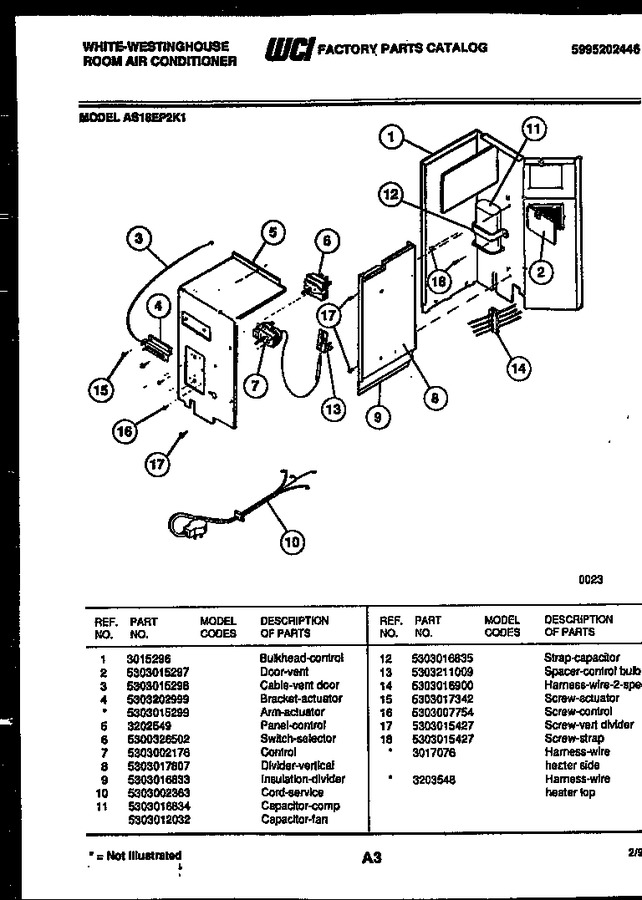

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3015296		Bulkhead - Control		Appelez-nous	-
2	5303015297		Door-vent		Appelez-nous	-
3	5303015298		Cable - Vent Door		Appelez-nous	-
4	5303202999		Bracket-actuator		Appelez-nous	-
5	3202549		Panel - Control		Appelez-nous	-
6	5300326502		Switch-selector		Appelez-nous	-
7	5303002176		Control		Appelez-nous	-
8	5303017807		Divider - Vertical		Appelez-nous	-
9	5303016833		Insulation-divider		Appelez-nous	-
10	5303002363		Cord-service		Appelez-nous	-
11	5303016834		Capacitor-comp		Appelez-nous	-
12	5303016835		Strap-capacitor		Appelez-nous	-
13	5303211009		Spacer-control Bulb		Appelez-nous	-
14	5303016900		Harness-wire (2-speed)		Appelez-nous	-
15	5303017342		Screw-actuator		Appelez-nous	-
16	5303007754		Screw-control		Appelez-nous	-
17	5303015427		Screw-vert Divider		Appelez-nous	-
18	5303015427		Screw-strap		Appelez-nous	-
*40068	3017076		Harness-wire Heater Side		Appelez-nous	-
*40068	3203548		Harness-wire Heater Top		Appelez-nous	-
11A	5303012032		Capacitor-fan		Appelez-nous	-
4A	5303015299		Arm - Actuator		Appelez-nous	-
