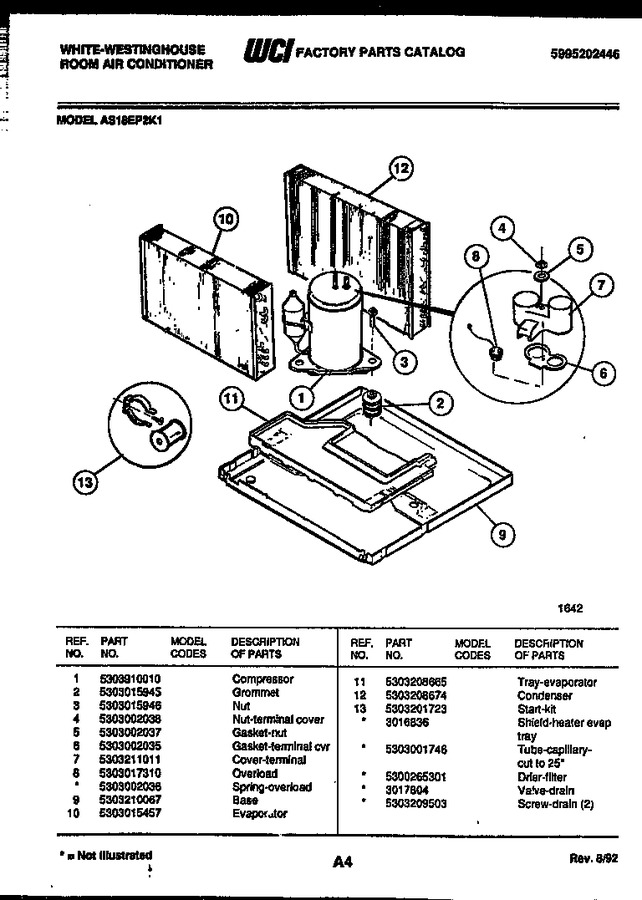

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303910010 | Compressor |
|
- | |||||
| 2 | 5303015945 | Grommet |
|
- | |||||
| 3 | 5303015946 | Nut |
|
- | |||||
| 4 | 5303002038 | Nut-terminal Cover |
|
- | |||||
| 5 | 5303002037 | Gasket-nut |
|
- | |||||
| 6 | 5303002035 | Gasket-terminal Cvr |
|
- | |||||
| 7 | 5303211011 | Cover-terminal |
|
- | |||||
| 8 | 5303017310 | Overload |
|
- | |||||
| 9 | 5303210067 | Base |
|
- | |||||
| 10 | 5303015457 | Evaporator |
|
- | |||||
| 11 | 5303208665 | Tray-evaporator |
|
- | |||||
| 12 | 5303208674 | Condenser |
|
- | |||||
| 13 | 5303201723 | Start Kit |
|
- | |||||
| *40070 | 3017804 | Valve-drain |
|
- | |||||
| *40070 | 5303001746 | Tube-capillary-cut To 25`` |
|
- | |||||
| *40070 | 3016836 | Shield-heater Evap Tray |
|
- | |||||
| *40070 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| *40071 | 5303209503 | Screw-drain (2) |
|
- | |||||
| 8A | 5303002036 | Spring-overload |
|
- |
