SELECT A DIAGRAM

01 - Cabinet (rev. G-k/10)


02 - Control Panel (rev. A-d)


03 - Control Panel (rev. E-f)


04 - Control Panel (rev. G-k/10)


05 - Cylinder & Drive (rev. A-d)


06 - Cylinder & Drive (rev. E & F)


07 - Door (rev. G-k/10)


08 - Exterior (rev. A-d)


09 - Exterior (rev. E-f)


10 - Heater (rev. A-d)


11 - Heater (rev. E-f)


12 - Heater (rev. G-k/10)


13 - Motor & Drive (rev. G-k/10)


14 - Tumbler (rev. G-k/10)

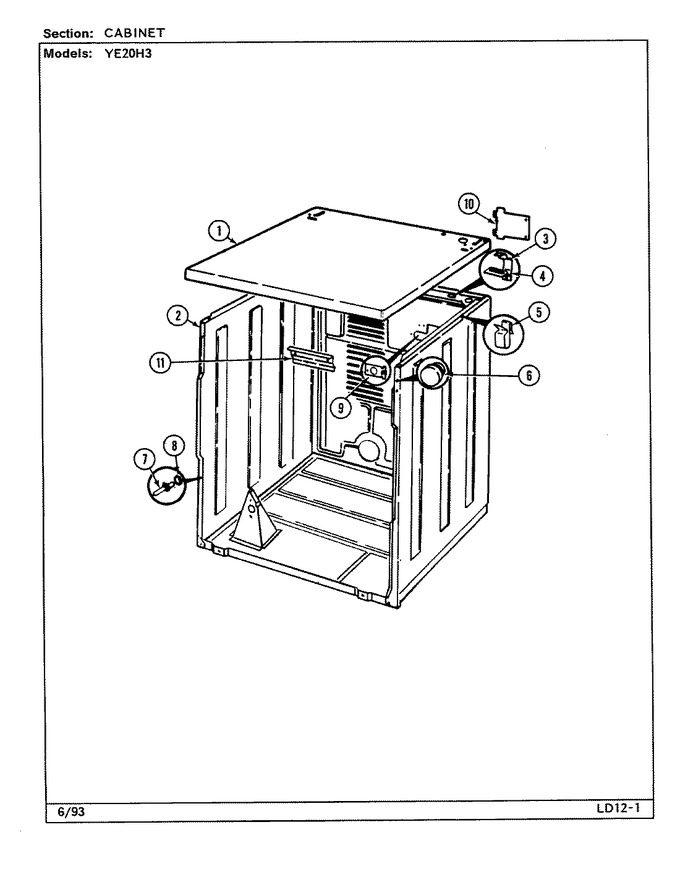

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-1711		Cabinet Top (dryer)	G	Appelez-nous	-
2	53-2559		Cabinet & Base Asm (wht)	H	Appelez-nous	-
2	53-1644		Cabinet & Base Assy. (wht)	G	Appelez-nous	-
3	63-5712		Hinge, Cabinet Top	G	Appelez-nous	-
4	33-0930		Pad, Top Hinge	G	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)	G		Immediately	$ 7.04
5	25-3034		Clip, Wiring	G	Appelez-nous	-
6	33-2653		Bumper, Cabinet	G	Appelez-nous	-
7	63-6148		Pin, Locator	G	Appelez-nous	-
8	WP3400029		Nut, Locator Pin   (Replaces: 25-0224)			Immediately	$ 6.98
8	53-0200		Sleeve, Locator Pin	G	Appelez-nous	-
9	53-0135		Support, Power Cord	G	Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-7857)	G		Immediately	$ 7.04
10	53-0136		Cover, Supply Cord	G	Appelez-nous	-
11	53-0133		Shield, Heat	K/10	Appelez-nous	-
11	53-0133		Shield, Heat	G	Appelez-nous	-
11	53-2350		Shield, Heat	H	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
