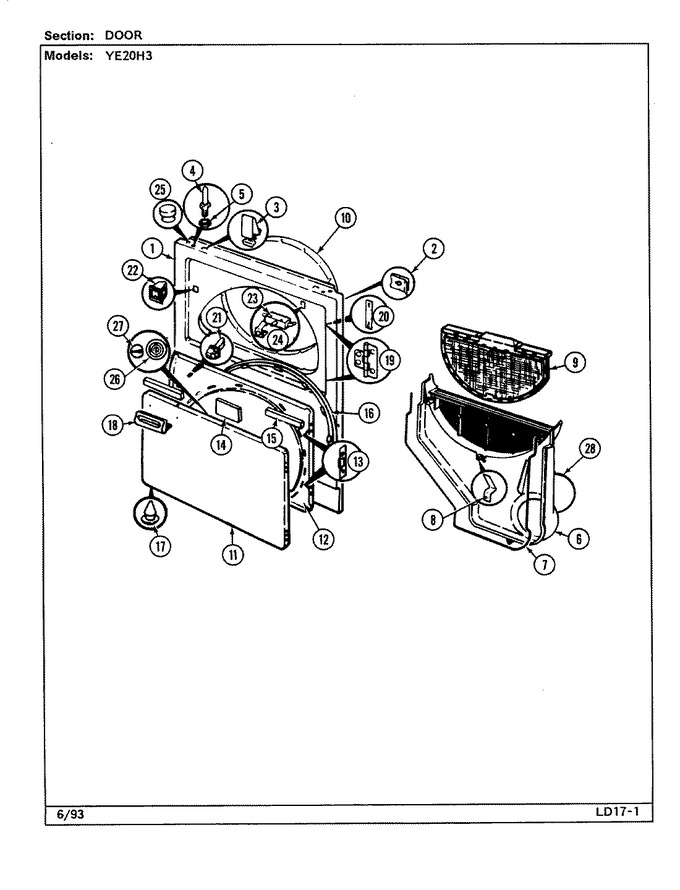

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-0726		Panel, Front (wht)	G	Appelez-nous	-
2	25-7817		Clip, U-type	G	Appelez-nous	-
2	WP489478		Screw, Front Panel To Cabinet   (Replaces: 25-7820)	G			$ 6.98
3	WP25-7220		Clip, Cabinet Top   (Replaces: 25-7220)	G			$ 10.77
4	63-6148		Pin, Locator	G	Appelez-nous	-
5	53-0200		Sleeve, Locator Pin	G	Appelez-nous	-
5	WP3400029		Nut, Locator Pin   (Replaces: 25-0224)	G		Immediately	$ 6.98
6	12001324		Collector Duct   (Replaces: 53-1299)	G			$ 187.37
6	489392		Screw 8-18x1/2 Truss H   (Replaces: 25-7810)	G			$ 12.02
7	12001324		Seal, Blower Housing   (Replaces: 53-0203)	G			$ 187.37
8	53-0123		Clip	G	Appelez-nous	-
9	WP53-0918		Filter, Lint   (Replaces: 53-0918)	G		Immediately	$ 84.45
10	WP31001637		Seal Assy (gray)   (Replaces: 53-0282)	G			$ 30.62
11	53-0154		Panel, Outer Door (wht)	G	Appelez-nous	-
12	53-0912		Panel, Inner Door (wht)	G	Appelez-nous	-
13	53-0119		Clip, Hinge	G	Appelez-nous	-
14	53-0251		Pad, Door	G	Appelez-nous	-
15	53-0252		Pad, Door	G	Appelez-nous	-
16	25-7770		Screw, Outer To Inner Door	G	Appelez-nous	-
16	WP31001529		Door Seal   (Replaces: 53-0112)	G			$ 115.24
17	25-3534		Plug Button, Door	G	Appelez-nous	-
18	53-0928		Handle, Door (chr)	G	Appelez-nous	-
18	53-0927		Handle, Door (wht)	G			$ 36.55
18	489392		Screw 8-18x1/2 Truss H   (Replaces: 25-7810)	G			$ 12.02
19	W10756178		Screw, No.6-20 1/2 Flthd Torx   (Replaces: 25-7809)	G			$ 5.39
19	53-0122		Hinge, Door	G	Appelez-nous	-
20	53-0121		Twin Nut	G	Appelez-nous	-
20	LA-1003		Door Catch Kit (incl. 21 & 22)	G		Immediately	$ 24.51
21	LA-1003		Strike, Door   (Replaces: 73-0033)	G		Immediately	$ 24.51
22	LA-1003		Catch, Door   (Replaces: 53-0187)	G		Immediately	$ 24.51
22	LA-1005		Switch Kit (incl. 23 & 24)	G			$ 31.33
22	WP489483		Screw, No.10 Torq Limiting   (Replaces: 25-7828)	G			$ 9.78
23	53-0148		Switch, Door	G			$ 22.49
24	WP31001319		Clip, Switch   (Replaces: 63-5990)	G			$ 0.84
25	33-2653		Bumper, Cabinet	G	Appelez-nous	-
26	W10124350		Not Required Part Or See Note	G	Appelez-nous	-
27	W10124350		Not Required Part Or See Note	G	Appelez-nous	-
28	12001324		Seal, Blower Housing   (Replaces: 53-0203)	G			$ 187.37
