SELECT A DIAGRAM

01 - Control Panel (rev. A-d)


02 - Control Panel (rev. E-f)


03 - Control Panel (rev. G-k/10)


04 - Cylinder & Drive (rev. A-d)


05 - Cylinder & Drive (rev. E & F)


06 - Exterior (rev. A-d)


07 - Exterior (rev. E-f)


08 - Heater (rev. A-d)


09 - Heater (rev. E-f)


10 - Heater (rev. G-k/10)


11 - Motor & Drive (rev. G-k/10)


12 - Tumbler (rev. G-k/10)

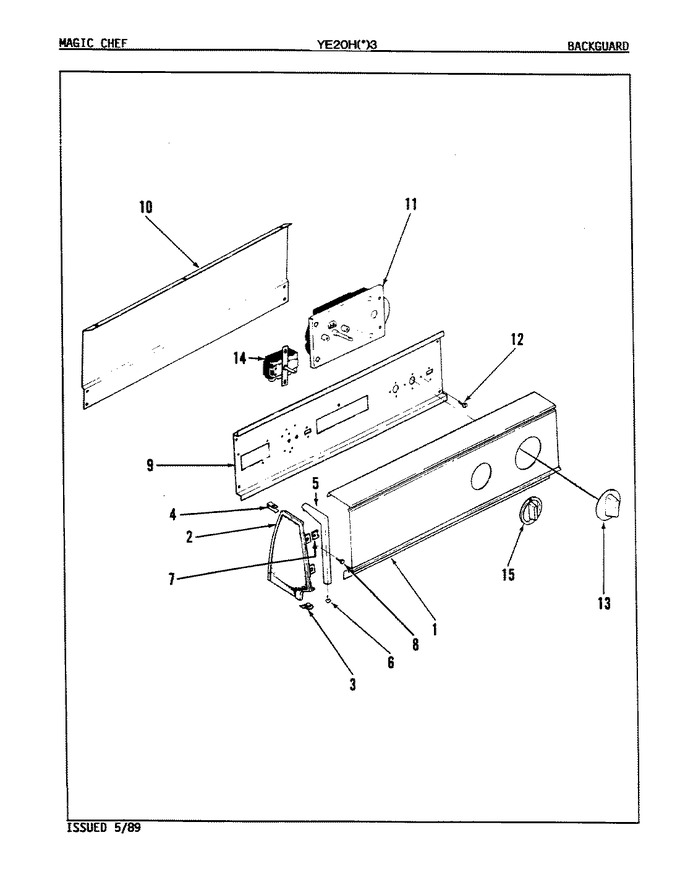

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-1276		Control Panel	E	Appelez-nous	-
2	25-7702		Speedclip, End Cap To Ctrl Pnl	E	Appelez-nous	-
2	53-2488		Insert, Instruction	E	Appelez-nous	-
2	25-7649		Screw	E	Appelez-nous	-
2	25-7697		Screw	E	Appelez-nous	-
2	35-2487		Cap, End (rt)	E	Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top	E	Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)	E		Immediately	$ 6.90
4	25-7852		Speedclip, Rr Shld To End Cap	E	Appelez-nous	-
5	53-0277		Trim, End Cap (rt)	E	Appelez-nous	-
6	25-7760		Screw	E	Appelez-nous	-
7	25-7702		Speedclip, End Cap To Ctrl Pnl	E	Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)	E		Immediately	$ 7.04
9	53-1676		Shield, Control	E	Appelez-nous	-
10	35-2688		Shield, Control Panel (rear)	E	Appelez-nous	-
11	53-1303CP		Timer   (Replaces: 53-1303)	E	Appelez-nous	-
11	WP33002917		Screw   (Replaces: 25-7435)	E		Immediately	$ 6.90
11	53-1758		Timer	E	Appelez-nous	-
11	63-6743		Resistor Assy.	E	Appelez-nous	-
12	25-0205		Screw	E	Appelez-nous	-
13	53-1529		Timer Knob & Skirt Assy	E	Appelez-nous	-
14	WP90767		Screw   (Replaces: 25-3092)	E		Immediately	$ 7.04
14	53-0344		Switch, Temperature	E	Appelez-nous	-
15	WP90767		Screw   (Replaces: 25-3092)	E		Immediately	$ 7.04
15	63-6731		Buzzer	E	Appelez-nous	-
15	35-2185		Knob, Selector (blk)	E	Appelez-nous	-
16	53-1442		Manual, Use & Care	E	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
