Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11117769 Leg, Leveling   (Replaces: 63-5519) E In-Stock Immediately $ 16.61

2 53-0120 Clip, Front Panel E Special Order $ 11.32

3 16515 Clip, Wiring   (Replaces: 25-7027) E Special Order $ 17.60

4 WP90767 Screw   (Replaces: 25-7741) E In-Stock Immediately $ 7.04

4 53-0153 Shield, Wiring E Appelez-nous -
5 WP681414 Screw   (Replaces: 25-7733) E In-Stock Immediately $ 7.07

5 LA-1054 Dryer Bulkhead Kit E Appelez-nous -
6 WP31001637 Seal Assy (gray)   (Replaces: 53-0282) E Special Order $ 30.62

7 53-1250 Cylinder (w/baffle) E Appelez-nous -
8 53-1249 Baffle, White E Appelez-nous -
8 WP3196164 Screw   (Replaces: 25-7759) E In-Stock Immediately $ 7.82

9 341241 Belt, Cylinder   (Replaces: 31531589) E In-Stock Immediately $ 16.34

9 LA-1004 Motor Mtg. Kit (dryer) E Appelez-nous -
10 53-1041 Motor Asm E Appelez-nous -
11 53-0693 Switch, Motor E Appelez-nous -
12 25-7811 Screw E Appelez-nous -
12 53-0852 Motor Bracket E Appelez-nous -
13 WP660658 Clamp, Motor   (Replaces: 53-0214) E Special Order $ 7.05

13 25-7674 Screw E Appelez-nous -
14 53-0764 Idler Arm E Appelez-nous -
15 53-1648 Idler Spring E Appelez-nous -
16 53-0134 Duct, Exhaust E Appelez-nous -
16 WP90767 Screw   (Replaces: 25-2134) E In-Stock Immediately $ 7.04

17 53-0774 Blower Housing E Appelez-nous -
18 53-0705 Cover & Seal E Appelez-nous -
18 12001324 Seal, Blower Housing   (Replaces: 53-0203) E Special Order $ 187.37

19 53-0106 Blower Wheel E Special Order $ 58.02

20 WP312967 Clamp   (Replaces: 25-7823) E In-Stock Immediately $ 10.68

21 25-7855 Ring, Retaining E Special Order $ 8.67

22 53-1026 Guide, Vane Inlet E Appelez-nous -
22 WP90767 Screw   (Replaces: 25-2134) E In-Stock Immediately $ 7.04

22 53-1024 Blower Cover E Appelez-nous -
22 WP33002917 Screw   (Replaces: 25-7807) E In-Stock Immediately $ 6.90

23 WP53-1107 Thermostat, Control (146/121)   (Replaces: 53-1107) E Special Order $ 81.25

24 53-0170 Thermostat, Lo-limit (120/110) E Appelez-nous -
24 WP90767 Screw   (Replaces: 25-2134) E In-Stock Immediately $ 7.04

25 53-0152 Lamp Socket E Appelez-nous -
26 WP12990527 Screw, Sems   (Replaces: 25-3457) E In-Stock Immediately $ 7.15

26 53-0570 Cyl Light Bulb E Appelez-nous -
27 53-0174 Lens, Bulb E Appelez-nous -
28 LA-1006 Glide Kit, Tumbler E In-Stock Immediately $ 25.12

28 WP3195558 Clip, Push-on   (Replaces: 25-3562) E Special Order $ 7.68

29 WP31001356 Rh Gld Cushion   (Replaces: 53-0182) E Special Order $ 76.16

30 WP31001469 Rh Cyl Glide   (Replaces: 53-0183) E Special Order $ 66.66

31 W10124350 Not Required Part Or See Note E Appelez-nous -
32 W10124350 Not Required Part Or See Note E Appelez-nous -
33 W10124350 Not Required Part Or See Note E Appelez-nous -
34 W10124350 Not Required Part Or See Note E Appelez-nous -
35 W10124350 Not Required Part Or See Note E Appelez-nous -
36 WP31001356 Lh Glide Cushion   (Replaces: 53-0723) E Special Order $ 76.16

37 WP31001470 Lh Cyl Glide   (Replaces: 53-0185) E Special Order $ 67.36

37 LA-1008 Rr Roller Kit E Special Order $ 66.73

38 WP53-0197 Support Assy.-cylinder Rear   (Replaces: 53-0197) E Special Order $ 81.21

38 WP3351614 Screw   (Replaces: 25-7101) E In-Stock Immediately $ 6.26

39 53-0642 Cyl Roller E Appelez-nous -
40 25-7813 Spacer E Appelez-nous -
41 25-7814 Washer E Special Order $ 5.33

42 WP25-7854 Ring, Retaining   (Replaces: 25-7854) E Special Order $ 10.68

43 W10124350 Not Required Part Or See Note E Appelez-nous -
44 W10124350 Not Required Part Or See Note E Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

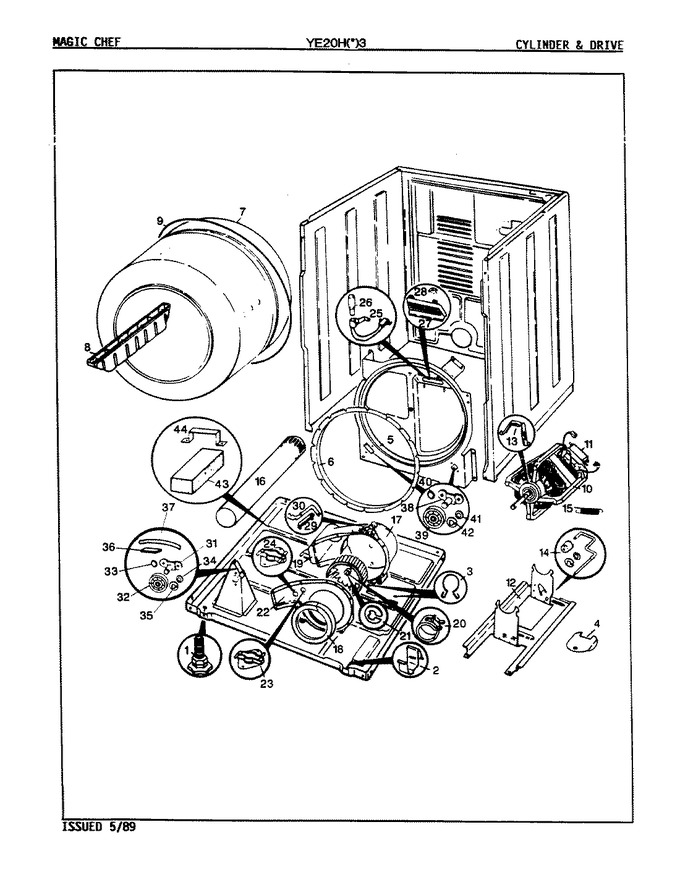

Diagram for YE20HY3
