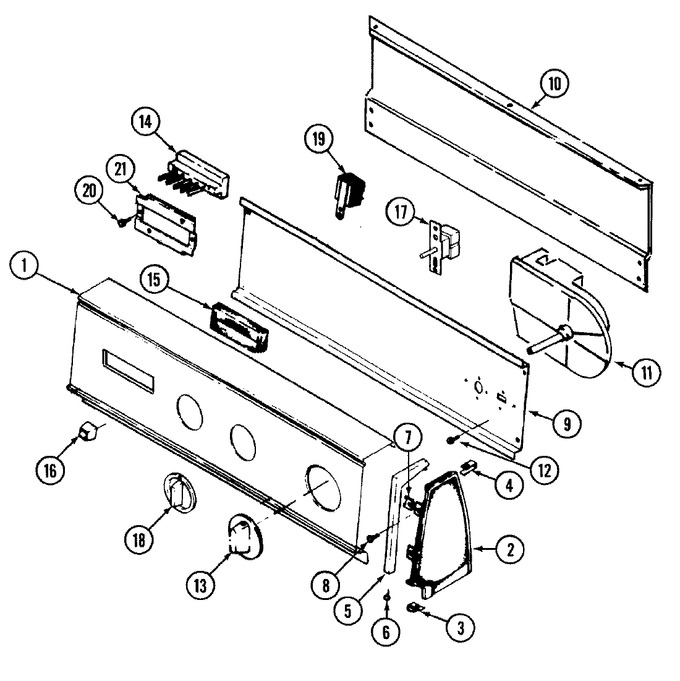

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53-1275 | Control Panel | F |
|
- | ||||
| 2 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | F |
|
- | ||||
| 2 | 35-2487 | Cap, End (rt) | F |
|
- | ||||
| 2 | 35-2488 | Cap, End (lt) | F |
|
- | ||||
| 2 | 25-7649 | Screw | F |
|
- | ||||
| 3 | 25-7697 | Screw | F |
|
- | ||||
| 3 | 25-7851 | Speedclip, End Cap To Top | F |
|
- | ||||
| 4 | WP33002917 | Screw (Replaces: 25-7435) | F |
|
Immediately | $ 6.90 | |||
| 4 | W10124350 | Not Required Part Or See Note | F |
|
- | ||||
| 5 | 53-0278 | Trim, End Cap (lt) | F |
|
- | ||||
| 5 | 53-0277 | Trim, End Cap (rt) | F |
|
- | ||||
| 6 | 25-7760 | Screw | F |
|
- | ||||
| 7 | WP33002917 | Screw (Replaces: 25-7435) | F |
|
Immediately | $ 6.90 | |||
| 8 | WP90767 | Screw (Replaces: 25-3092) | F |
|
Immediately | $ 7.04 | |||
| 9 | 53-1678 | Control Shield | F |
|
- | ||||
| 10 | WP12990527 | Screw, Sems (Replaces: 25-3457) | F |
|
Immediately | $ 7.15 | |||
| 10 | 35-2688 | Shield, Control Panel (rear) | F |
|
- | ||||
| 11 | 53-1816 | Timer | F |
|
- | ||||
| 12 | WP33002917 | Screw (Replaces: 25-7435) | F |
|
Immediately | $ 6.90 | |||
| 13 | 53-1529 | Timer Knob & Skirt Assy | F |
|
- | ||||
| 14 | 53-1296 | Switch | F |
|
- | ||||
| 14 | WP90767 | Screw (Replaces: 25-3092) | F |
|
Immediately | $ 7.04 | |||
| 15 | 33-8541 | Switch Pad | F |
|
- | ||||
| 16 | 35-2588 | Pushbutton - Black | F |
|
- | ||||
| 17 | WP90767 | Screw (Replaces: 25-3092) | F |
|
Immediately | $ 7.04 | |||
| 17 | 53-1263 | Rotary Switch | F |
|
- | ||||
| 18 | 35-2185 | Knob, Selector (blk) | F |
|
- | ||||
| 19 | WP90767 | Screw (Replaces: 25-3092) | F |
|
Immediately | $ 7.04 | |||
| 19 | 63-6731 | Buzzer | F |
|
- | ||||
| 20 | 25-7712 | Screw | F |
|
- | ||||
| 21 | 33-6621 | Bracket, Switch | F |
|
- | ||||
| 22 | 53-1444 | Manual, Use & Care | F |
|
- |
