SELECT A DIAGRAM
New Model Search:

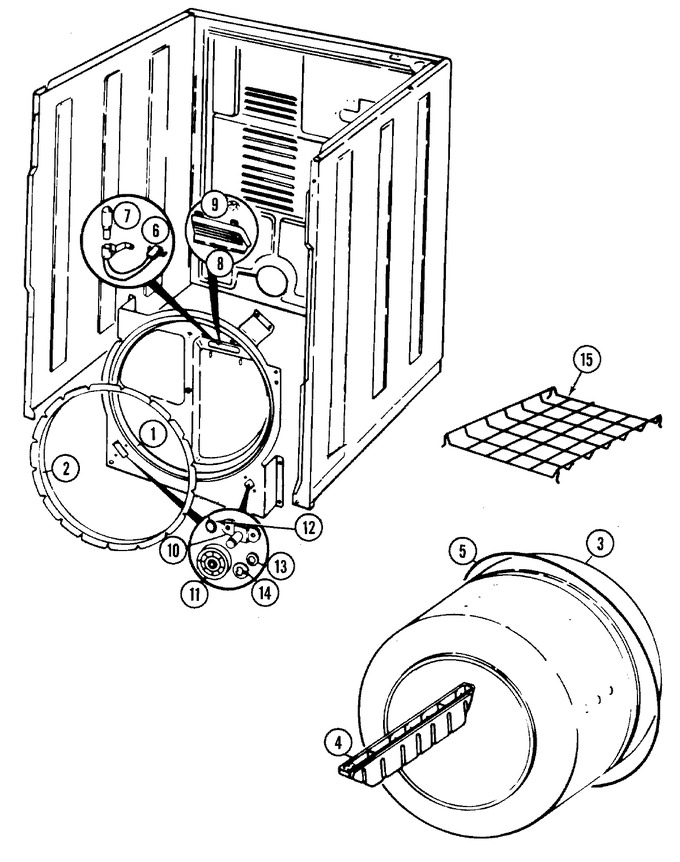

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw (Replaces: 25-7733) | F |
|
Immediately | $ 7.07 | |||
| 1 | Y02100001 | Bulkhead | F |
|
- | ||||
| 2 | WP31001637 | Seal Assy (gray) (Replaces: 53-0282) | F |
|
$ 30.62 | ||||
| 3 | 53-1250 | Cylinder (w/baffle) | F |
|
- | ||||
| 4 | WP3196164 | Screw (Replaces: 25-7759) | F |
|
Immediately | $ 7.82 | |||
| 4 | Y02100002 | Baffle (wht) | F |
|
- | ||||
| 5 | 341241 | Cylinder Belt (Replaces: 53-1080) | F |
|
Immediately | $ 16.34 | |||
| 6 | WP12990527 | Screw, Sems (Replaces: 25-3457) | F |
|
Immediately | $ 7.15 | |||
| 6 | 53-1580 | Receptacle Assy | F |
|
- | ||||
| 7 | 53-0570 | Cyl Light Bulb | F |
|
- | ||||
| 8 | 53-0174 | Lens, Bulb | F |
|
- | ||||
| 9 | WP3195558 | Clip, Push-on (Replaces: 25-3562) | F |
|
$ 7.68 | ||||
| 10 | WP3351614 | Screw (Replaces: 25-7101) | F |
|
Immediately | $ 6.26 | |||
| 10 | WP53-0197 | Support Assy.-cylinder Rear (Replaces: 53-0197) | F |
|
$ 81.21 | ||||
| 11 | 53-0642 | Cyl Roller | F |
|
- | ||||
| 12 | 25-7813 | Spacer | F |
|
- | ||||
| 13 | 25-7814 | Washer | F |
|
$ 5.33 | ||||
| 14 | LA-1008 | Rr Roller Kit | F |
|
$ 66.73 | ||||
| 14 | WP25-7854 | Ring, Retaining (Replaces: 25-7854) | F |
|
$ 10.68 | ||||
| 15 | 53-0772 | Rack, Drying | F |
|
- |
